AS3510 Analog Audio Front-End

AS3510 Description

Preliminary Data Sheet AS3510 Analog Audio Front-End Analog Voice Codec AS3510 AS14889 PRELIMINARY DATA SHEET PRELIMINARY DATA SHEET CONFIDENTIAL G.
This codec-chip contains a high performance 18 bit digital to analog converter.

AS3510 Features

* On chip DCDC Converter - 1.0 to 5.5V input voltage range Digital Supply, 2.9V Analog Supply, 2,9V Core Supply, 2.25V USB Transceiver Supply, 3.2V Dynamic range >95 dB THD < -85dB De-emphasis for 32 kHz, 44.1 kHz and 48 kHz Max. 2x 0.5W @ 4 Ω Analog volume control
* 39dB to +3dB, 3dB steps in

AS3510 Applications

* (audio playback) within battery or line operated equipment. An additional audio power amplifier can directly drive external headphones or small 4 Ω speakers with a power of up to half a watt. The power-up is click- and pop-less due to a smooth start-up circuitry. The overall distortion level is alwa

📥 Download Datasheet

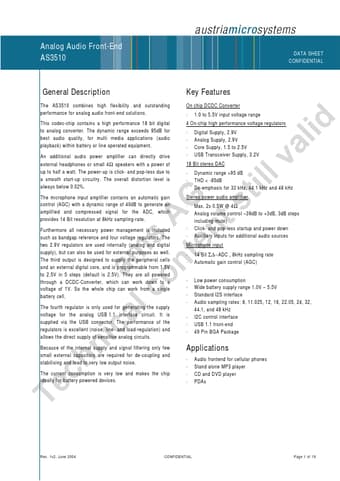

Preview of AS3510 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS3510
Manufacturer
Austriamicrosystems
File Size
894.57 KB
Datasheet
AS3510_Austriamicrosystems.pdf
Description
Analog Audio Front-End
