SAM3A - SMART ARM-based MCU

This page provides the datasheet information for the SAM3A, a member of the SAM3X SMART ARM-based MCU family.

Description

The Atmel | SMART SAM3X/A series is a member of a family of Flash microcontrollers based on the high performance 32-bit ARM Cortex-M3 RISC processor.

Features

  • up to 512 Kbytes of Flash and up to 100 Kbytes of SRAM. The peripheral set includes a High Speed USB Host and Device port with embedded transceiver, an Ethernet MAC, 2 CANs, a High Speed MCI for SDIO/SD/MMC, an External Bus Interface with NAND Flash Controller (NFC), 5 UARTs, 2 TWIs, 4 SPIs, as well as a PWM timer, three 3-channel general-purpose 32-bit timers, a low-power RTC, a lowpower RTT, 256-bit General Purpose Backup Registers, a 12-bit ADC and a 12-bit DAC. The SAM3X/A devices have three.

📥 Download Datasheet

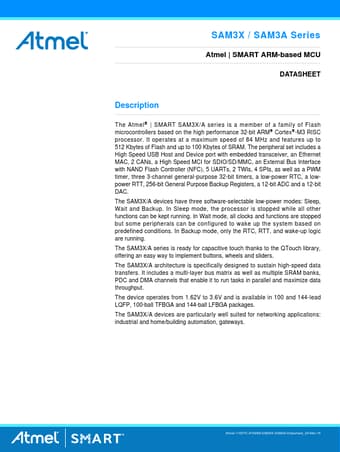

Datasheet preview – SAM3A

📁 Similar Datasheet

  • SAM30HF - HIGH VOLTAGE HYPER FAST RECTIFIER (SSDI)
  • SAM30HFSMS - HIGH VOLTAGE HYPER FAST RECTIFIER (SSDI)
  • SAM3270 - Dual Color LED Lamp (AUK corp)
  • SAM3271 - Dual Color LED Lamp (AUK)
  • SAM3272 - Dual Color LED Lamp (AUK)
  • SAM3370 - Dual Color LED Lamp (AUK)
  • SAM3370B - Dual Color LED Lamp (AUK)
  • SAM-M8Q - Easy-to-use u-blox M8 GNSS antenna (u-blox)
  • SAM20G - 32-bit Cortex-M0+ MCU (Microchip)
  • SAM20HF - HIGH VOLTAGE HYPER FAST RECTIFIER (SSDI)
Other Datasheets by Atmel

Full PDF Text Transcription

Click to expand full text
SAM3X / SAM3A Series Atmel | SMART ARM-based MCU DATASHEET Description The Atmel | SMART SAM3X/A series is a member of a family of Flash microcontrollers based on the high performance 32-bit ARM Cortex-M3 RISC processor. It operates at a maximum speed of 84 MHz and features up to 512 Kbytes of Flash and up to 100 Kbytes of SRAM. The peripheral set includes a High Speed USB Host and Device port with embedded transceiver, an Ethernet MAC, 2 CANs, a High Speed MCI for SDIO/SD/MMC, an External Bus Interface with NAND Flash Controller (NFC), 5 UARTs, 2 TWIs, 4 SPIs, as well as a PWM timer, three 3-channel general-purpose 32-bit timers, a low-power RTC, a lowpower RTT, 256-bit General Purpose Backup Registers, a 12-bit ADC and a 12-bit DAC.
