ATSAM3U1E, ATSAM3U4E SMART ARM-based Flash MCU

ATSAM3U1E Description

SAM3U Series Atmel | SMART ARM-based Flash MCU DATASHEET .
The Atmel® | SMART SAM3U series is a member of a family of Flash microcontrollers based on the high performance 32-bit ARM® Cortex®-M3 RISC processor.

ATSAM3U1E Features

* up to 256 Kbytes of Flash and up to 52 Kbytes of SRAM. The peripheral set includes a High Speed USB Device Port with embedded transceiver, a High Speed MCI for SDIO/SD/MMC, an External Bus Interface with NAND Flash controller, up to 4 USARTs, up to 2 TWIs, up to 5 SPIs, as well as 4 PWM timers, one

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ATSAM3U1E, ATSAM3U4E. Please refer to the document for exact specifications by model.

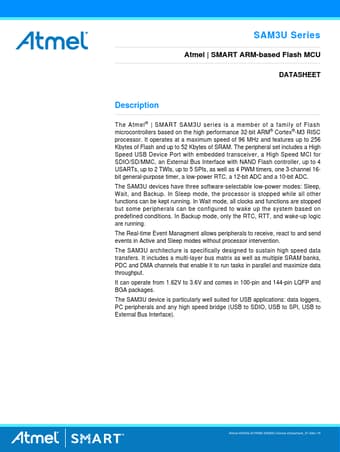

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ATSAM3U1E, ATSAM3U4E
Manufacturer
Atmel
File Size
4.74 MB
Datasheet
ATSAM3U4E-Atmel.pdf
Description
SMART ARM-based Flash MCU
Note
This datasheet PDF includes multiple part numbers: ATSAM3U1E, ATSAM3U4E.
Please refer to the document for exact specifications by model.
