AK5365 - 24-BIT 96KHZ ADC

Asahi Kasei Microsystems

Datasheet Details

Part number	AK5365
Manufacturer	Asahi Kasei Microsystems
File Size	368.86 KB
Description	24-BIT 96KHZ ADC
Datasheet	AK5365_AsahiKaseiMicrosystems.pdf

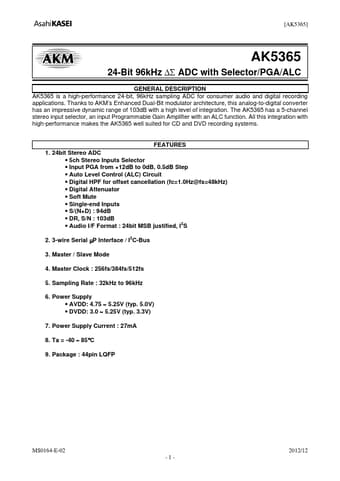

AK5365 is a high-performance 24-bit, 96kHz sampling ADC for consumer audio and digital recording applications.

1. 24bit Stereo ADC.
5ch Stereo Inputs Selector.
Input PGA from +12dB to 0dB, 0.5dB Step.
Auto Level Control (ALC) Circuit.
Digital HPF for offset cancellation (fc=1.0Hz@fs=48kHz).
Digital Attenuator.
Soft Mute.
Single-end Inputs.
S/(N+D) : 94dB.
DR, S/N : 103dB.
Audio I/F Format : 24bit MSB justified, I2S 2. 3-wire Serial μP Interface / I2C-Bus 3. Master / Slave Mode 4. Master Clock.
