AK4551 LOW POWER & SMALL PACKAGE 20-BIT CODEC

AK4551 Description

ASAHI KASEI [AK4551] AK4551 Low Power & Small Package 20bit ∆Σ CODEC GENERAL .
The AK4551 is a low voltage 20bit A/D & D/A converter for portable digital audio system.

AK4551 Features

* o HPF for DC-offset cancel (fc=3.4Hz) o Single-ended ADC - S/(N+D): 82dB@VDD=2.5V - Dynamic Range, S/N: 89dB@VDD=2.5V o Single-ended DAC - Digital de-emphasis for 32kHz, 44.1kHz, 48kHz sampling - S/(N+D): 85dB@VDD=2.5V - Dynamic Range, S/N: 92dB@VDD=2.5V o Audio I/F format: MSB First, 2’s Compliment

📥 Download Datasheet

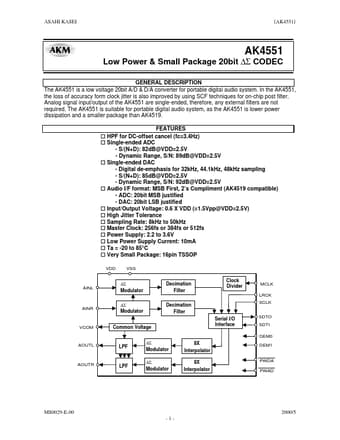

Preview of AK4551 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AK4551
Manufacturer
Asahi Kasei Microsystems
File Size
107.41 KB
Datasheet
AK4551_AsahiKaseiMicrosystems.pdf
Description
LOW POWER & SMALL PACKAGE 20-BIT CODEC
