AK4532 - Internet/Network/General Purpose Multimedia Audio CODEC

Asahi Kasei Microsystems

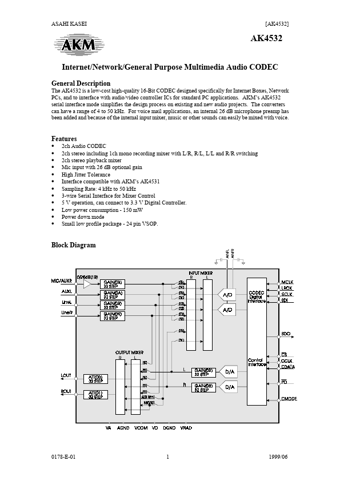

AK4532 Datasheet Preview — Preview of AK4532 PDF

Datasheet Details

Part number	AK4532
Manufacturer	Asahi Kasei Microsystems
File Size	345.74 KB
Description	Internet/Network/General Purpose Multimedia Audio CODEC
Datasheet	AK4532_AsahiKaseiMicrosystems.pdf

AK4532 Product details

Description

The AK4532 is a low-cost high-quality 16-Bit CODEC designed specifically for Internet Boxes, Network PCs, and to interface with audio/video controller ICs for standard PC applications.

Features

2ch Audio CODEC 2ch stereo including 1ch mono recording mixer with L/R, R/L, L/L and R/R switching 2ch stereo playback mixer Mic input with 26 dB optional gain High Jitter Tolerance Interface compatible with AKM’s AK4531 Sampling Rate: 4 kHz to 50 kHz 3-wire Serial Interface for Mixer Control 5 V operation, can connect to 3.3 V Digital Controller. Low power consumption - 150 mW.
