AK4520A 100dB 20Bit Stereo ADC/DAC

AK4520A Description

ASAHI KASEI [AK4520A] AK4520A 100dB 20Bit Stereo ∆Σ ADC & DAC General .
The AK4520 is a stereo CMOS A/D & D/A converter for middle-range MD/DAT, Surround System and musical instruments.

AK4520A Features

* † ∆Σ Stereo ADC - 64x Oversampling - S/(N+D): 90dB at 5V, 86dB at 3V - Dynamic Range: 100dB at 5V, 96dB at 3V - S/N: 100dB at 5V, 96dB at 3V - Digital HPF for offset cancel † ∆Σ Stereo DAC - 128x Oversampling - 2nd order SCF + 2nd order CTF - Digital de-emphasis for 32kHz, 44.1kHz, 48kHz sampling -

📥 Download Datasheet

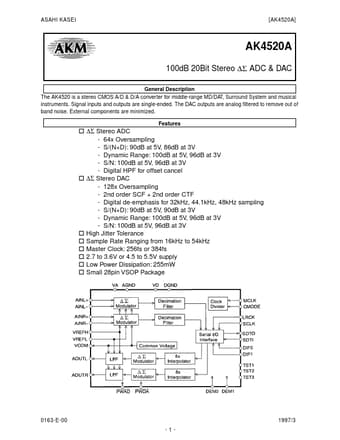

Preview of AK4520A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AK4520A
Manufacturer
Asahi Kasei Microsystems
File Size
198.20 KB
Datasheet
AK4520A_AsahiKaseiMicrosystems.pdf
Description
100dB 20Bit Stereo ADC/DAC
