3T5AN-6130 Datasheet (Artesyn)

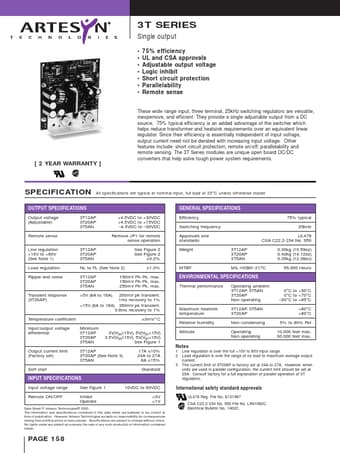

3T5AN-6130, DC/DC CONVERTERS

3T SERIES Single output 75% efficiency UL and CSA approvals Adjustable output voltage Logic inhibit Short circuit protection Parallelability Remote sense These wide range input, three terminal, 25kHz switching regulators are versatile, inexpensive, and efficient.

They provide a single adjustable output from a DC source.

75% typical efficiency is an added advantage of the switcher which helps reduce transformer and heatsink re

3T5AN-6130 Features

* include: short circuit protection; remote on/off; parallelability and remote sensing. The 3T Series modules are unique open board DC/DC converters that help solve tough power system requirements. [ 2 YEAR WARRANTY ] SPECIFICATION OUTPUT SPECIFICATIONS Output voltage (Adjustable) Remote sense Line r
