AC23C16200B - 1MX16/2MX8 BIT CMOS MASK ROM

The AC23C16200B by Artchips is a 1MX16/2MX8 BIT CMOS MASK ROM. Below is the official datasheet preview.

Datasheet Details

Part number	AC23C16200B
Manufacturer	Artchips
File Size	117.24 KB
Description	1MX16/2MX8 BIT CMOS MASK ROM
Datasheet	AC23C16200B_Artchips.pdf

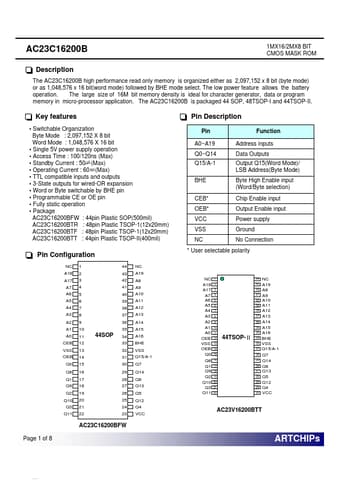

Additional preview pages of the AC23C16200B datasheet.

AC23C16200B Product details

Description

1MX16/2MX8 BIT CMOS MASK ROM The AC23C16200B high performance read only memory is organized either as 2,097,152 x 8 bit (byte mode) or as 1,048,576 x 16 bit(word mode) followed by BHE mode select.The low power feature allows the battery operation.The large size of 16M bit memory density is ideal for character generator, data or program memory in micro-processor application.The AC23C16200B is packaged 44 SOP, 48TSOP-I and 44TSOP-II.Key

Features

Switchable Organization Byte Mode : 2,097,152 X 8 bit Word Mode : 1,048,576 X 16 bit.
Single 5V power supply operation.
Access Time : 100/120ns (Max).
Standby Current : 50 (Max).
Operating Current : 60 (Max).
TTL compatible inputs and outputs.
3-State outputs for wired-OR expansion.
Word or Byte switchable by BHE pin.
Programmable CE or OE pin.
Fully static operation.
Package AC23C16200BFW : 44pin.
