AOCH10-24S - AC-DC ITE Power Module

Product Overview

Arch Electronics

📥 Download Datasheet

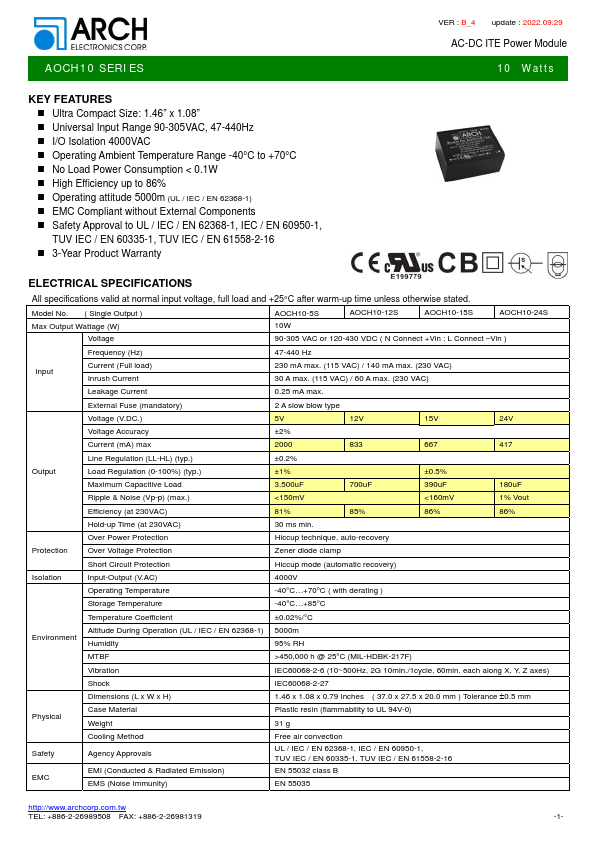

AOCH10-24S AC-DC ITE Power Module by Arch Electronics - Datasheet Preview — Datasheet preview – AOCH10-24S

Datasheet Details

Part number	AOCH10-24S
Manufacturer	Arch Electronics
File Size	177.61 KB
Description	AC-DC ITE Power Module
Datasheet	AOCH10-24S Datasheet
Note	This datasheet PDF includes multiple part numbers: AOCH10-24S, AOCH10. Please refer to the document for exact specifications by model.

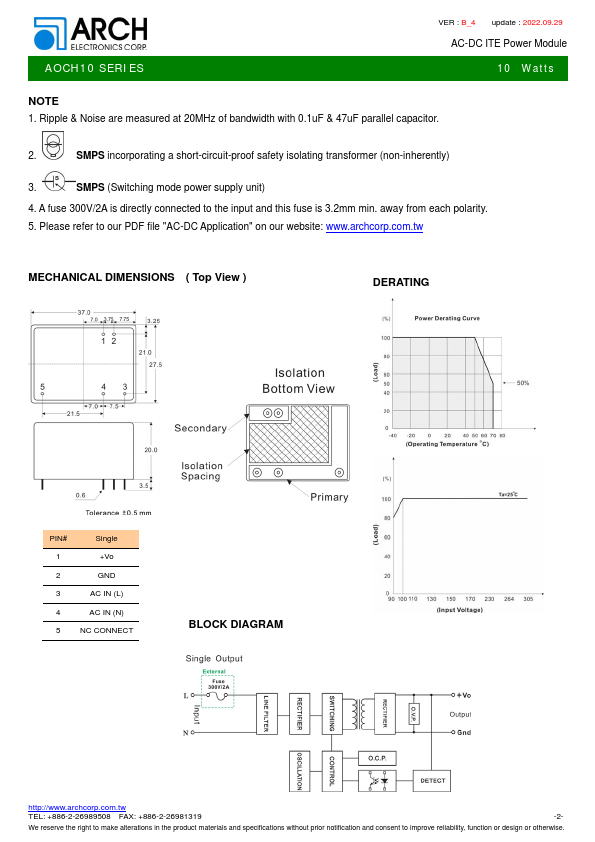

Additional preview pages of the AOCH10-24S datasheet.

Product details

Features

Ultra Compact Size: 1.46” x 1.08”.
Universal Input Range 90-305VAC, 47-440Hz.
I/O Isolation 4000VAC.
Operating Ambient Temperature Range -40°C to +70°C.
No Load Power Consumption < 0.1W.
High Efficiency up to 86%.
Operating attitude 5000m (UL / IEC / EN 62368-1).
EMC Compliant without External Components.
Safety Approval to UL / IEC / EN 62368-1, IEC / EN 60950-1, TUV IEC / EN 60335-1, TUV IEC / EN 61558-2-16.
3-Year Product Warranty.
