The AV4232 by Apuls Intergrated Circuits is a single-chip synthesizing CMOS VLSI. Below is the official datasheet preview.

AV4232 single-chip synthesizing CMOS VLSI by Apuls Intergrated Circuits - Datasheet Preview — Official preview page of the **AV4232** single-chip synthesizing CMOS VLSI datasheet (Apuls Intergrated Circuits).

Datasheet Details

Part number	AV4232
Manufacturer	Apuls Intergrated Circuits
File Size	269.62 KB
Description	single-chip synthesizing CMOS VLSI
Datasheet	AV4232_ApulsIntergratedCircuits.pdf

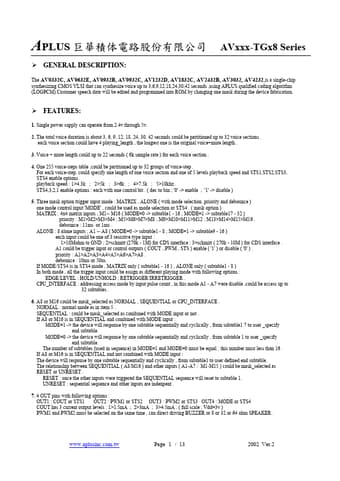

Additional preview pages of the AV4232 datasheet.

AV4232 Product details

Description

AVxxx-TGx8 Series The AV0332C, AV0632E, AV0932B, AV0932C, AV1232D, AV1832C, AV2432B, AV3032, AV4232,is a single-chip synthesizing CMOS VLSI that can synthesize voice up to 3,6,9,12,18,24,30,42 seconds ,using APLUS qualified coding algorithm (LOGPCM).Customer speech data will be edited and programmed into ROM by changing one mask during the device fabrication.

Features

1. Single power supply can operate from 2.4v through 5v. 2. The total voice duration is about 3, 6, 9, 12, 18, 24, 30, 42 seconds could be partitioned up to 32 voice sections . each voice section could have 4 playing_length , the longest one is the original voice+mute length . 3. Voice + mute length could up to 22 seconds ( 6k sample rate ) for each voice section . 4. One 255 voice-steps table ,could be partitioned up to 32 groups of voice-step . For each voice-step, could specify one length of.
