MT9V032C12STM - 1/3-Inch Wide-VGA CMOS Digital Image Sensor

Download the MT9V032C12STM datasheet PDF. This datasheet also covers the MT9V032 variant, as both devices belong to the same 1/3-inch wide-vga cmos digital image sensor family and are provided as variant models within a single manufacturer datasheet.

Description

48-pin CLCC (mono) 48-pin CLCC (color) 48-pin CLCC demo kit (mono) 48-pin CLCC headboard only (mono) 48-pin CLCC demo kit (color) 48-pin CLCC headboard only (color) Part Number MT9V032C12STM ES MT9V032C12STC ES MT9V032C12STMD ES MT9V032C12STMH ES MT9V032C12STCD ES MT9V032C12STCH ES Applications

Features

  • 1/3-Inch Wide-VGA CMOS Digital Image Sensor MT9V032 Data Sheet For the latest data sheet revision, refer to Aptina’s Web site: www. aptina. com Features.
  • Array format: Wide-VGA, active 752H x 480V (360,960 pixels).
  • Global shutter photodiode pixels; simultaneous integration and readout.
  • Monochrome or color: Near_IR enhanced performance for use with non-visible NIR illumination.
  • Readout modes: progressive or interlaced.
  • Shutter efficiency: >99%.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MT9V032-AptinaImagingCorporation.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MT9V032C12STM
Manufacturer Aptina Imaging Corporation
File Size 1.97 MB
Description 1/3-Inch Wide-VGA CMOS Digital Image Sensor
Datasheet download datasheet MT9V032C12STM Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MT9V032C12STM 1/3-Inch Wide-VGA CMOS Digital Image Sensor Micron
MT9V032C12STC 1/3-Inch Wide-VGA CMOS Digital Image Sensor Micron
MT9V032 1/3-Inch Wide-VGA CMOS Digital Image Sensor Micron
MT9V032 1/3-Inch Wide-VGA CMOS Digital Image Sensor ON Semiconductor
MT9V034 1/3-Inch Wide-VGA CMOS Digital Image Sensor ON Semiconductor

Other Datasheets by Aptina Imaging Corporation

Part Number Description
MT9V032C12STMD 1/3-Inch Wide-VGA CMOS Digital Image Sensor
MT9V032C12STMH 1/3-Inch Wide-VGA CMOS Digital Image Sensor
MT9V032C12STC 1/3-Inch Wide-VGA CMOS Digital Image Sensor
MT9V032C12STCD 1/3-Inch Wide-VGA CMOS Digital Image Sensor
MT9V032C12STCH 1/3-Inch Wide-VGA CMOS Digital Image Sensor

Full PDF Text Transcription

Click to expand full text

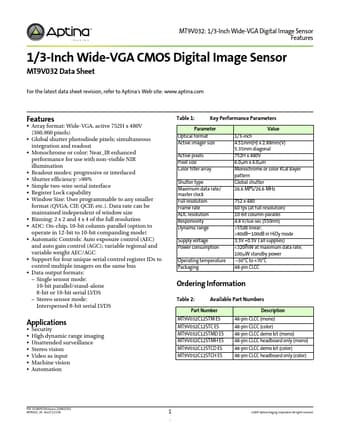

MT9V032: 1/3-Inch Wide-VGA Digital Image Sensor Features 1/3-Inch Wide-VGA CMOS Digital Image Sensor MT9V032 Data Sheet For the latest data sheet revision, refer to Aptina’s Web site: www.aptina.com Features • Array format: Wide-VGA, active 752H x 480V (360,960 pixels) • Global shutter photodiode pixels; simultaneous integration and readout • Monochrome or color: Near_IR enhanced performance for use with non-visible NIR illumination • Readout modes: progressive or interlaced • Shutter efficiency: >99% • Simple two-wire serial interface • Register Lock capability • Window Size: User programmable to any smaller format (QVGA, CIF, QCIF, etc.).
