CM3415 - P-Channel 20V Power MOSFET

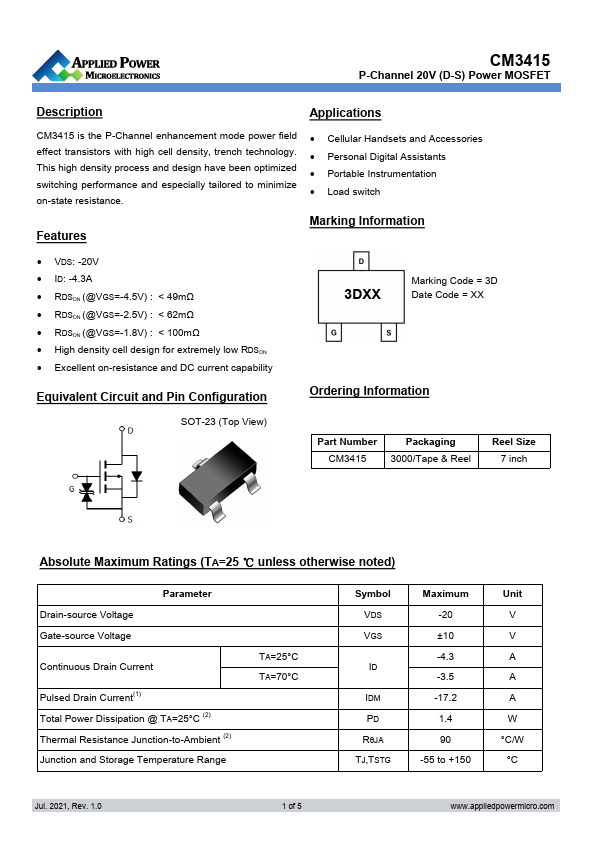

CM3415 Datasheet Preview — Preview of CM3415 PDF

Datasheet Details

Part number	CM3415
Manufacturer	Applied Power Microelectronics
File Size	1.19 MB
Description	P-Channel 20V Power MOSFET
Datasheet	CM3415-AppliedPowerMicroelectronics.pdf

CM3415 Product details

Description

Applications CM3415 is the P-Channel enhancement mode power field Cellular Handsets and Accessories effect transistors with high cell density, trench technology. Personal Digital Assistants This high density process and design have been optimized Portable Instrumentation switching performance and especially tailored to minimize Load switch on-state resistance.

Features

Marking Information.
VDS: -20V.
ID: -4.3A.
RDSON (@VGS=-4.5V) : < 49mΩ.
RDSON (@VGS=-2.5V) : < 62mΩ.
RDSON (@VGS=-1.8V) : < 100mΩ.
High density cell design for extremely low RDSON.
Excellent on-resistance and DC current capability Equivalent Circuit and Pin Configuration 3DXX Marking Code = 3D Date Code = XX Ordering Information SOT-23 (Top View) Part Number Packaging CM3415 3000/Tape & Reel Reel Size 7 inch Absolute Maximum Ratings (TA=25 ℃ unless o.
