APM2323A - P-Channel MOSFET

Anpec Electronics

📥 Download Datasheet

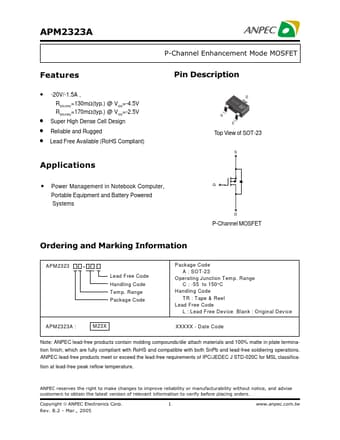

APM2323A Datasheet Preview — Preview of APM2323A PDF

Datasheet Details

Part number: APM2323A
Manufacturer: Anpec Electronics
File Size: 105.76 KB
Datasheet: APM2323A-AnpecElectronics.pdf
Description: P-Channel MOSFET

APM2323A Product details

Description

D G S Top View of SOT-23 S Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems G D P-Channel MOSFET Ordering and Marking Information APM2323 Lead Free Code Handling Code Temp.Range Package Code Package Code A : SOT-23 Operating Junction Temp.Range C : -55 to 150°C Handling Code TR : Tape & Reel Lead Free Code L : Lead Free Device Blank : Original Device APM2323A : M23X XXXXX - Date Code Note: ANPEC lead-free products contain molding compoun

Features

-20V/-1.5A , RDS(ON)=130mΩ(typ. ) @ VGS=-4.5V RDS(ON)=170mΩ(typ. ) @ VGS=-2.5V.
Super High Dense Cell Design.
Reliable and Rugged.
Lead Free Available (RoHS Compliant).
