C1517J5003AHF Ultra Low Profile 0805 Hybrid Coupler

C1517J5003AHF Description

Model C1517J5003AHF Rev D Ultra Low Profile 0805 3 dB, 90° Hybrid Coupler .
The C1517J5003AHF is a low cost, low profile sub-miniature high performance 3 dB coupler in an easy to use surface mount package.

C1517J5003AHF Features

* 1500
* 1700 MHz
* 0.7mm Height Profile
* High Isolation & Low Loss
* LTE Bands: 24
* Surface Mountable
* Tape & Reel
* Non-con

C1517J5003AHF Applications

* where low insertion loss and tight amplitude and phase balance are required. The C1517J5003AHF is available on tape and reel for pick and place high volume manufacturing. All of the Xinger components are constructed from ceramic filled PTFE composites which possess excellent electrical and mechanica

📥 Download Datasheet

Preview of C1517J5003AHF PDF

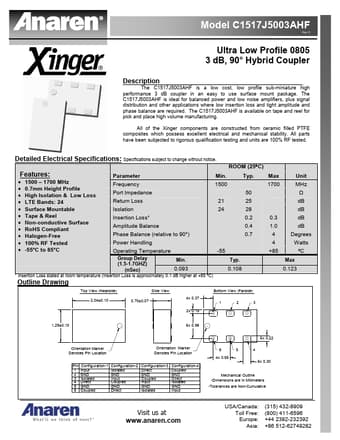

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C1517J5003AHF
Manufacturer
Anaren
File Size
211.04 KB
Datasheet
C1517J5003AHF-Anaren.pdf
Description
Ultra Low Profile 0805 Hybrid Coupler
