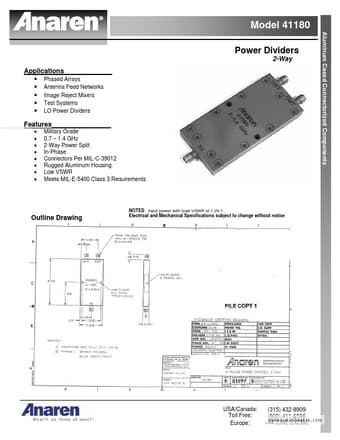

1.4 GHz 2-Way Power Split In-Phase Connectors Per MIL-C-39012 Rugged Aluminum Housing Low VSWR Meets MIL-E-5400 Class 3 Requirements
Outline Drawing
NOTES: Input power with load VSWR of 1.20:1 Electrical and Mechanical Specifications subject to change without notice
USA/Canada: Toll Free: Europe:
(315) 432-8909 (800) 411-6596 +44 2392-232392
Model 41180
Typical Test D.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text
Model 41180
Aluminum Cased Connectorized Components
Power Dividers
2-Way Applications_____________ • Phased Arrays • Antenna Feed Networks • Image Reject Mixers • Test Systems • LO Power Dividers
www.DataSheet4U.com
Features________________
• • • • • • • • Military Grade 0.7 – 1.4 GHz 2-Way Power Split In-Phase Connectors Per MIL-C-39012 Rugged Aluminum Housing Low VSWR Meets MIL-E-5400 Class 3 Requirements
Outline Drawing
NOTES: Input power with load VSWR of 1.20:1 Electrical and Mechanical Specifications subject to change without notice
USA/Canada: Toll Free: Europe:
(315) 432-8909 (800) 411-6596 +44 2392-232392
Model 41180
Typical Test Data Plots
Phase Balance
www.DataSheet4U.com
Aluminum Cased Connectorized Components
Ins.
41180 Datasheet
