1P620, Pico Xinger 20dB Directional Coupler

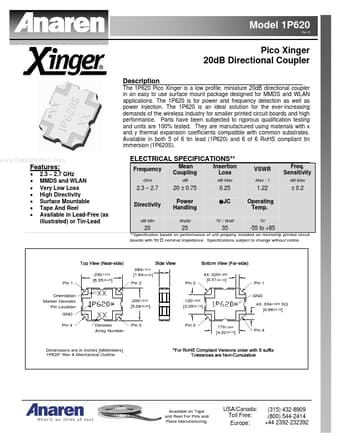

Model 1P620 Rev.B Pico Xinger 20dB Directional Coupler .
The 1P620 Pico Xinger is a low profile, miniature 20dB directional coupler in an easy to use surface mount package designed for MMDS and WLAN applicat.

Features

* 2.3
* 2.7 GHz MMDS and WLAN Very Low Loss High Directivity Surface Mountable Tape And Reel Available in Lead-Free (as illustrated) or Tin-Lead Mean Coupling dB Insertion Loss dB Max VSWR Max : 1 Freq. Sensitivity dB M

Applications

* The 1P620 is for power and frequency detection as well as power injection. The 1P620 is an ideal solution for the ever-increasing demands of the wireless industry for smaller printed circuit boards and high performance. Parts have been subjected to rigorous qualification testing and units are 100%

1P620_AnarenMicrowave.pdf
