AM7962N Dual N-Channel MOSFET

AM7962N Description

Analog Power AM7962N Dual N-Channel 60-V (D-S) MOSFET Key .

AM7962N Features

* Low rDS(on) trench technology
* Low thermal impedance

AM7962N Applications

* DC/DC Conversion Circuits
* Motor Drives VDS (V) 60 PRODUCT SUMMARY rDS(on) (mΩ) 23 @ VGS = 10V 28 @ VGS = 4.5V ID (A) 8.6 7.8 DFN5X6-8L ABSOLUTE MAXIMUM RATINGS (TA = 25°C UNLESS OTHERWISE NOTED) Parameter Symbol Limit Drain-Source Voltage VDS 60 Gate-Source Voltage VG

📥 Download Datasheet

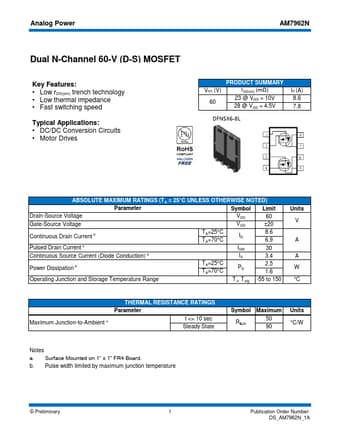

Preview of AM7962N PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AM7962N
Manufacturer
Analog Power
File Size
292.31 KB
Datasheet
AM7962N-AnalogPower.pdf
Description
Dual N-Channel MOSFET
