AM70N15-40P MOSFET

AM70N15-40P Description

Analog Power N-Channel 150-V (D-S) MOSFET These miniature surface mount MOSFETs utilize a high cell density trench process to provide low rDS(on) and .

AM70N15-40P Applications

* are DC-DC converters and power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.
* Low rDS(on) provides higher efficiency and extends battery life Low thermal impedance copper leadfra

📥 Download Datasheet

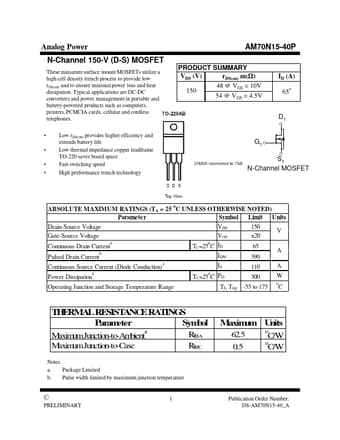

Preview of AM70N15-40P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AM70N15-40P
Manufacturer
Analog Power
File Size
177.30 KB
Datasheet
AM70N15-40P_AnalogPower.pdf
Description
MOSFET
