AIC3414 - Synchronous Step-Up Converter

AIC3414 Description

AIC3414 1.2MHz, Synchronous Step-Up Converter in SOT23-6 * .
The AIC3414 step-up converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using an internal synchronous rectifier to obtain.

AIC3414 Features

* z z z z z

AIC3414 Applications

* z z z z z Single / Dual Cells Ni-Cd / Ni-Mh Type Battery Operated Products Internet Audio Player Wireless and DSL Modems Digital Still Cameras Portable Equipment
* TYPICAL APPLICATION CIRCUITS L1 4.7uH 1.2V Vin U1 6 4 VIN SHDN GND AIC3414 SW VOUT FB 1 5 3 R1 1M 3.3V/120mA Vout Cin 4.7

📥 Download Datasheet

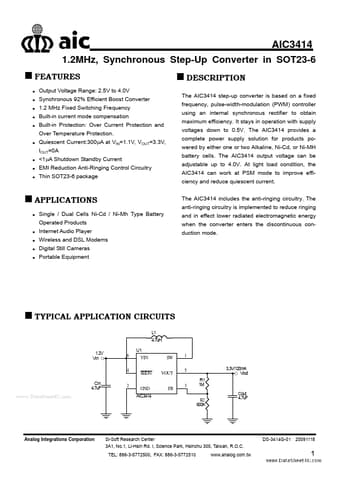

Preview of AIC3414 PDF
