MAX41400 - Precision Instrumentation Amplifier

Product Overview

Analog Devices

Part number	MAX41400
Manufacturer	Analog Devices
File Size	1.18 MB
Description	Precision Instrumentation Amplifier
Datasheet	MAX41400 Datasheet

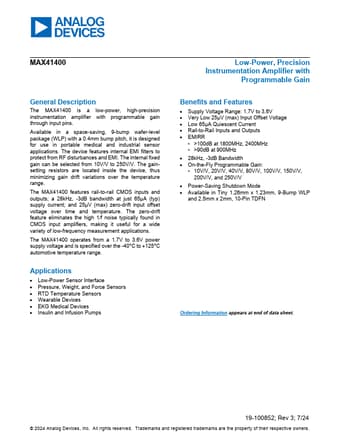

Additional preview pages of the MAX41400 datasheet.

The MAX41400 is a low-power, high-precision instrumentation amplifier with programmable gain through input pins.

internal EMI filters to protect from RF disturbances and EMI. The internal fixed gain can be selected from 10V/V to 250V/V. The gainsetting resistors are located inside the device, thus minimizing gain drift variations over the temperature range. The MAX41400 features rail-to-rail CMOS inputs and outputs; a 28kHz, -3dB bandwidth at just 65µA (typ) supply current; and 25µV (max) zero-drift input offset voltage over time and temperature. The zero-drift feature eliminates the high 1/f noise typical.
