MAX26404 - Fully-Integrated Synchronous Silent Switcher Buck

Analog Devices

The MAX26404 by Analog Devices is a Fully-Integrated Synchronous Silent Switcher Buck. Below is the official datasheet preview.

📥 Download Datasheet

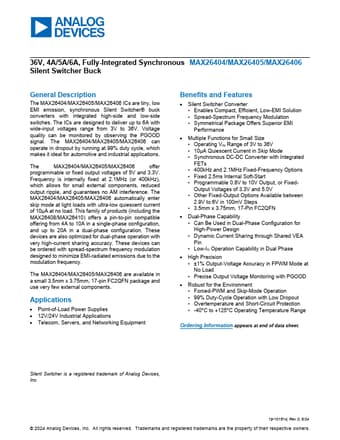

MAX26404 Fully-Integrated Synchronous Silent Switcher Buck by Analog Devices - Datasheet Preview — Official preview page of the **MAX26404** Fully-Integrated Synchronous Silent Switcher Buck datasheet (Analog Devices).

Datasheet Details

Part number	MAX26404
Manufacturer	Analog Devices
File Size	2.47 MB
Description	Fully-Integrated Synchronous Silent Switcher Buck
Datasheet	MAX26404-AnalogDevices.pdf
Additional preview pages of the MAX26404 datasheet.

MAX26404 Product details

Description

The MAX26404/MAX26405/MAX26406 ICs are tiny, low EMI emission, synchronous Silent Switcher® buck converters with integrated high-side and low-side switches.

Features

Silent Switcher Converter.
Enables Compact, Efficient, Low-EMI Solution.
Spread-Spectrum Frequency Modulation.
Symmetrical Package Offers Superior EMI Performance.
Multiple Functions for Small Size.
Operating VIN Range of 3V to 36V.
10μA Quiescent Current in Skip Mode.
Synchronous DC-DC Converter with Integrated FETs.
400kHz and 2.1MHz Fixed-Frequency Options.
Fixed 2.5ms Internal Soft-Start.
Prog.
