MAX20410 - Fully Integrated Buck Converters

Download the MAX20410 datasheet PDF (MAX20408 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for fully integrated buck converters.

Description

The MAX20408/MAX20410/MAX20408E/MAX20410E are automotive, highly-integrated synchronous buck converters with internal high-side and low-side switches.

The ICs deliver up to 8A/10A with input voltages from 3.0V to 36V.

The voltage quality can be monitored by the PGOOD signal.

Features

  • High-Power DC-DC Converter in Small Solution Size.
  • 8A/10A Maximum Output Current.
  • 400kHz and 2.1MHz Fixed Frequency Options.
  • Fixed 2.5ms Soft-Start Time.
  • 34ns Minimum On-Time.
  • Programmable 0.8V to 10V Output with 400kHz, 0.8V to 6V Output with 2.1MHz, or Fixed Output Options.
  • ±1% Output Voltage Accuracy (MAX20408E/ MAX20410E).
  • Accurate EN Threshold for Programmable UVLO (MAX20408E/MAX20410E).
  • Symmetric and Balanced SUP.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX20408-AnalogDevices.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • MAX20410 - Automotive 36V 8A/10A Fully-Integrated Buck Converter (Maxim Integrated)
  • MAX2041 - Upconversion / Downconversion Mixer (Maxim Integrated Products)
  • MAX204 - +5V RS-232 Transceivers with 0.1uF External Capacitors (Maxim)
  • MAX20408 - Automotive 36V 8A/10A Fully-Integrated Buck Converter (Maxim Integrated)
  • MAX2042 - 2000MHz to 3000MHz Upconversion/Downconversion Mixer (Maxim Integrated Products)
  • MAX2042A - 1600MHz to 3900MHz Upconversion/Downconversion Mixer (Maxim Integrated)
  • MAX2043 - Low LO Leakage Base-Station Rx/Tx Mixer (Maxim Integrated Products)
  • MAX2044 - 2300MHz to 4000MHz Upconversion/Downconversion Mixer (Maxim Integrated Products)
  • MAX2045 - High-Gain Vector Multipliers (Maxim Integrated Products)
  • MAX2046 - High-Gain Vector Multipliers (Maxim Integrated Products)
Other Datasheets by Analog Devices
  • MAX20410E - Fully Integrated Buck Converters
  • MAX20411 - Automotive High-Efficiency Single 16A/22A/30A/40A Step-Down Converter
  • MAX20402 - Fully Integrated Synchronous Silent Switcher Buck Converters
  • MAX20403 - Fully Integrated Synchronous Silent Switcher Buck Converters
  • MAX20404 - Automotive 36V Synchronous Silent Switcher Buck Converters
  • MAX20405 - Automotive 36V Synchronous Silent Switcher Buck Converters
  • MAX20406 - Automotive 36V Synchronous Silent Switcher Buck Converters
  • MAX20408 - Fully Integrated Buck Converters

Full PDF Text Transcription

Click to expand full text

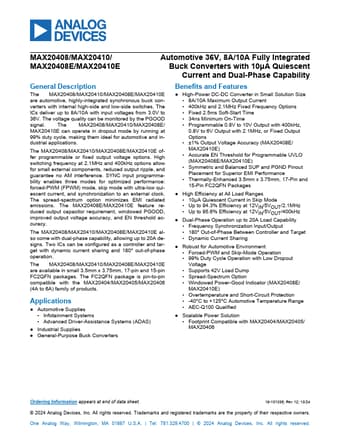

MAX20408/MAX20410/ MAX20408E/MAX20410E Automotive 36V, 8A/10A Fully Integrated Buck Converters with 10μA Quiescent Current and Dual-Phase Capability General Description The MAX20408/MAX20410/MAX20408E/MAX20410E are automotive, highly-integrated synchronous buck converters with internal high-side and low-side switches. The ICs deliver up to 8A/10A with input voltages from 3.0V to 36V. The voltage quality can be monitored by the PGOOD signal. The MAX20408/MAX20410/MAX20408E/ MAX20410E can operate in dropout mode by running at 99% duty cycle, making them ideal for automotive and industrial applications. The MAX20408/MAX20410/MAX20408E/MAX20410E offer programmable or fixed output voltage options. High switching frequency at 2.
