MAX20408 - Fully Integrated Buck Converters

Product Overview

Analog Devices

Datasheet Details

Part number	MAX20408
Manufacturer	Analog Devices
File Size	1.53 MB
Description	Fully Integrated Buck Converters
Datasheet	MAX20408 Datasheet

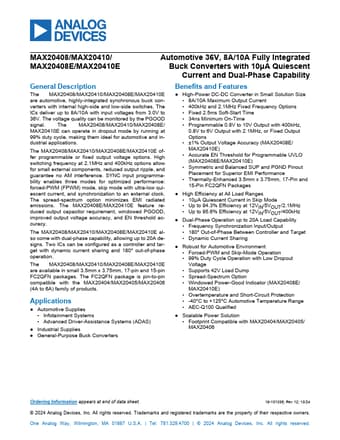

Additional preview pages of the MAX20408 datasheet.

Product details

Description

The MAX20408/MAX20410/MAX20408E/MAX20410E are automotive, highly-integrated synchronous buck converters with internal high-side and low-side switches.

Features

High-Power DC-DC Converter in Small Solution Size.
8A/10A Maximum Output Current.
400kHz and 2.1MHz Fixed Frequency Options.
Fixed 2.5ms Soft-Start Time.
34ns Minimum On-Time.
Programmable 0.8V to 10V Output with 400kHz, 0.8V to 6V Output with 2.1MHz, or Fixed Output Options.
±1% Output Voltage Accuracy (MAX20408E/ MAX20410E).
Accurate EN Threshold for Programmable UVLO (MAX20408E/MAX20410E).
Symmetric and Balanced SUP.
