MAX17320

The MAX17320 is 2S-4S ModelGauge m5 EZ Fuel Gauge designed by Analog Devices.

Product Overview

Analog Devices

Datasheet Details

Part number	MAX17320
Manufacturer	Analog Devices
File Size	4.17 MB
Description	2S-4S ModelGauge m5 EZ Fuel Gauge
Datasheet	MAX17320-AnalogDevices.pdf

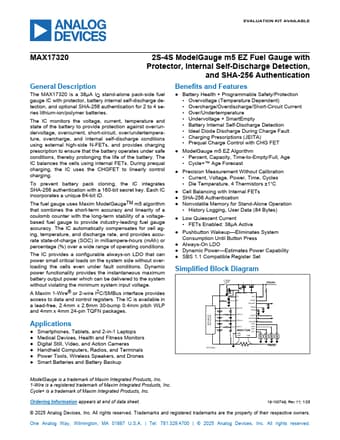

Additional preview pages of the MAX17320 datasheet.

Product details

Description

The MAX17320 is a 38μA IQ stand-alone pack-side fuel gauge IC with protector, battery internal self-discharge detection, and optional SHA-256 authentication for 2 to 4 series lithium-ion/polymer batteries.

Features

Battery Health + Programmable Safety/Protection.
Overvoltage (Temperature Dependent).
Overcharge/Overdischarge/Short-Circuit Current.
Over/Undertemperature.
Undervoltage + SmartEmpty.
Battery Internal Self-Discharge Detection.
Ideal Diode Discharge During Charge Fault.
Charging Prescriptions (JEITA).
Prequal Charge Control with CHG FET.
ModelGauge m5 EZ Algorithm.
Percent, Capacity, Time-to-Empty/Full, Ag.
