LTM4664 - Single 50A uModule Regulator

Analog Devices

📥 Download Datasheet

LTM4664 Datasheet Preview — Preview of LTM4664 PDF

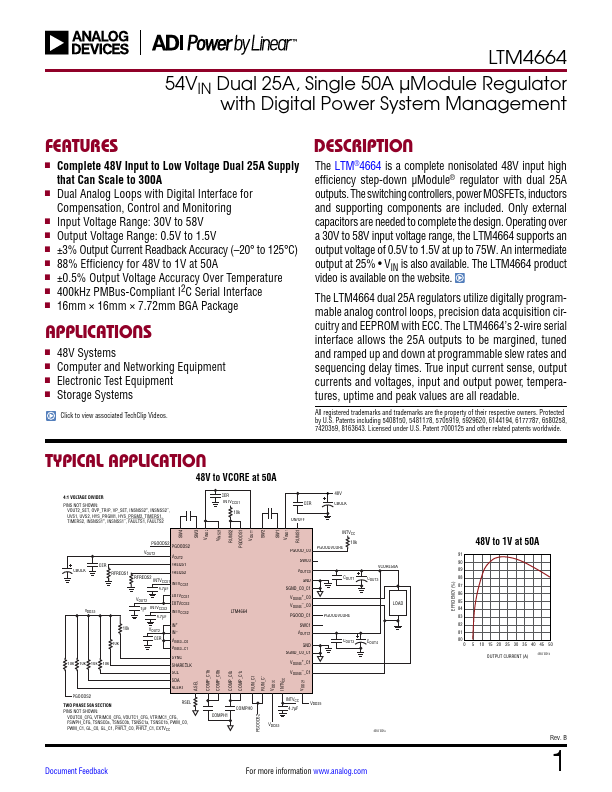

datasheet Preview Page 2

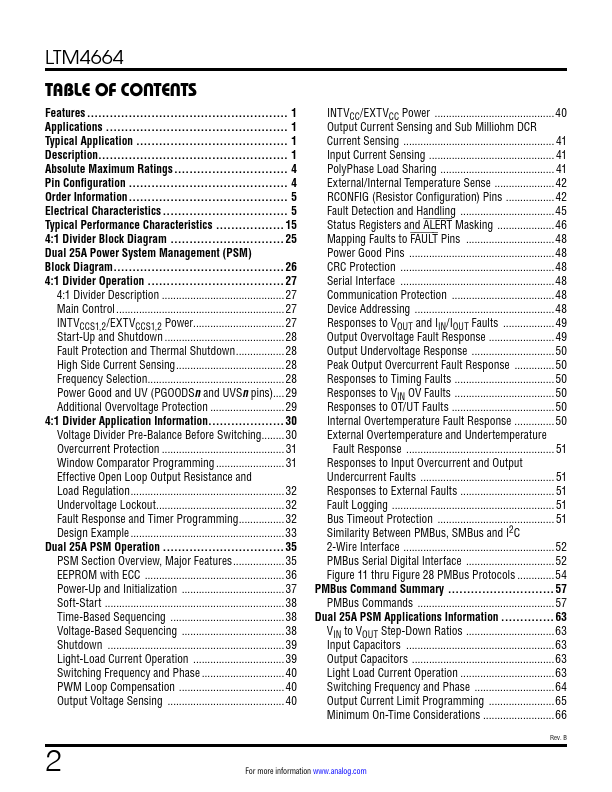

datasheet Preview Page 3

Datasheet Details

Part number	LTM4664
Manufacturer	Analog Devices
File Size	6.78 MB
Description	Single 50A uModule Regulator
Datasheet	LTM4664-AnalogDevices.pdf

LTM4664 Product details

Description

The LTM®4664 is a complete nonisolated 48V input high efficiency step-down µModule® regulator with dual 25A outputs. VIN is also available.

Features

n Complete 48V Input to Low Voltage Dual 25A Supply that Can Scale to 300A n Dual Analog Loops with Digital Interface for Compensation, Control and Monitoring n Input Voltage Range: 30V to 58V n Output Voltage Range: 0.5V to 1.5V n ±3% Output Current Readback Accuracy (.
20° to 125°C) n 88% Efficiency for 48V to 1V at 50A n ±0.5% Output Voltage Accuracy Over Temperature n 400kHz PMBus-Compliant I2C Serial Interface n 16mm × 16mm × 7.72mm BGA Package.
