LTC3310-1, LTC3310S - 10A Synchronous Step-Down Silent Switcher

Name: LTC3310-1
SKU: LTC3310-1-1511120

Analog Devices

📥 Download Datasheet

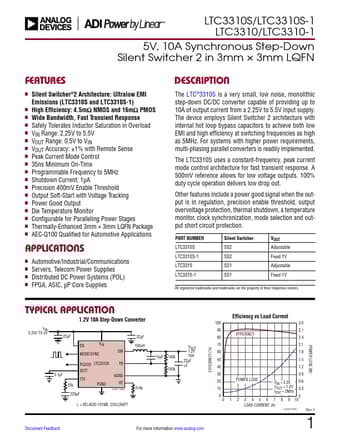

LTC3310-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC3310-1, LTC3310S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LTC3310-1, LTC3310S
Manufacturer	Analog Devices
File Size	2.66 MB
Description	10A Synchronous Step-Down Silent Switcher
Datasheet	LTC3310S-AnalogDevices.pdf
Note	This datasheet PDF includes multiple part numbers: LTC3310-1, LTC3310S. Please refer to the document for exact specifications by model.

LTC3310-1 Product details

Description

The LTC®3310S is a very small, low noise, monolithic step-down DC/DC converter capable of providing up to 10A of output current from a 2.25V to 5.5V input supply.

Features

n Silent Switcher®2 Architecture: Ultralow EMI Emissions (LTC3310S and LTC3310S-1) n High Efficiency: 4.5mΩ NMOS and 16mΩ PMOS n Wide Bandwidth, Fast Transient Response n Safely Tolerates Inductor Saturation in Overload n VIN Range: 2.25V to 5.5V n VOUT Range: 0.5V to VIN n VOUT Accuracy: ±1% with Remote Sense n Peak Current Mode Control n 35ns Minimum On-Time n Programmable Frequency to 5MHz n Shutdown Current: 1µA n Precision 400mV Enable Threshold n Output Soft-Start with Voltage Tracking n P.
