LTC3300-1 - High Efficiency Bidirectional Multicell Battery Balancer

Analog Devices

Datasheet Details

Part number	LTC3300-1
Manufacturer	Analog Devices
File Size	1.71 MB
Description	High Efficiency Bidirectional Multicell Battery Balancer
Datasheet	LTC3300-1-AnalogDevices.pdf

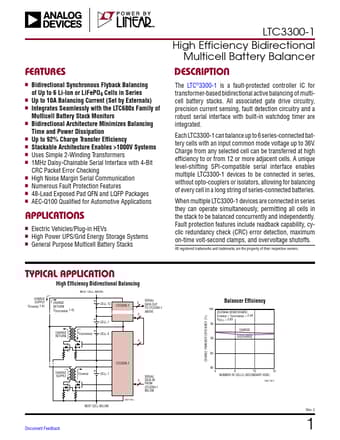

The LTC®3300-1 is a fault-protected controller IC for transformer-based bidirectional active balancing of multicell battery stacks.

n Bidirectional Synchronous Flyback Balancing of Up to 6 Li-Ion or LiFePO4 Cells in Series n Up to 10A Balancing Current (Set by Externals) n Integrates Seamlessly with the LTC680x Family of Multicell Battery Stack Monitors n Bidirectional Architecture Minimizes Balancing Time and Power Dissipation n Up to 92% Charge Transfer Efficiency n Stackable Architecture Enables >1000V Systems n Uses Simple 2-Winding Transformers n 1MHz Daisy-Chainable Serial Interface with 4-Bit CRC Packet Error Checking.
