LTC2068 - Zero-Drift Operational Amplifier

This page provides the datasheet information for the LTC2068, a member of the LTC2066 Zero-Drift Operational Amplifier family.

Description

The LTC®2066/LTC2067/LTC2068 are single, dual, and quad low power, zero-drift, 100kHz amplifiers.

The LTC2066/LTC2067/LTC2068 enable high resolution measurement at extremely low power levels.

Typical supply current is 7.5µA per amplifier with a maximum of 10µA.

Features

  • n Low Supply Current: 10μA Maximum (per Amplifier) n Offset Voltage: 5μV Maximum n Offset Voltage Drift: 0.02μV/°C Maximum n Input Bias Current: n 5pA Typical n 50pA Maximum,.
  • 40°C to 85°C n 150pA Maximum,.
  • 40°C to 125°C n Integrated EMI Filter (90dB Rejection at 1.8GHz) n Shutdown Current: 170nA Maximum (per Amplifier) n Rail-to-Rail Input and Output n 1.7V to 5.25V Operating Supply Range n AVOL: 140dB Typical n Low-Charge Power-Up for Duty Cycled.

📥 Download Datasheet

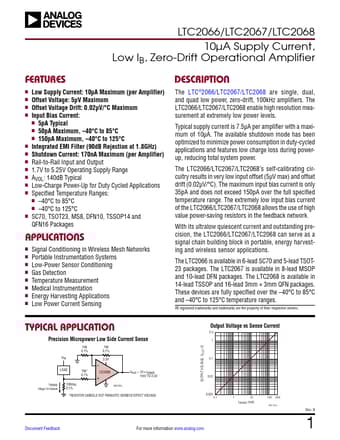

Datasheet preview – LTC2068

Datasheet Details

Part number LTC2068
Manufacturer Analog Devices
File Size 4.79 MB
Description Zero-Drift Operational Amplifier
Datasheet download datasheet LTC2068 Datasheet
Additional preview pages of the LTC2068 datasheet.

📁 Similar Datasheet

  • LTC2063 - Zero-Drift Operational Amplifier (Linear Technology)
  • LTC2000 - 16-/14-/11-Bit 2.5Gsps DACs (Linear Technology)
  • LTC201A - Quad CMOS Analog Switches (Linear Technology)
  • LTC202 - Quad CMOS Analog Switches (Linear)
  • LTC202CS - Quad CMOS Analog Switche (Linear)
  • LTC203 - Quad CMOS Analog Switches (Linear)
  • LTC2051 - Dual/Quad Zero-Drift Operational Amplifiers (Linear Technology)
  • LTC2052 - Dual/Quad Zero-Drift Operational Amplifiers (Linear)
  • LTC2053 - Resistor-Programmable Instrumentation Amplifier (Linear Technology)
  • LTC2053-SYNC - Resistor-Programmable Instrumentation Amplifier (Linear Technology)
Other Datasheets by Analog Devices
  • LTC2063 - Zero-Drift Operational Amplifiers
  • LTC2064 - Zero-Drift Operational Amplifier
  • LTC2064 - Zero-Drift Operational Amplifiers
  • LTC2065 - Zero-Drift Operational Amplifiers
  • LTC2065 - Zero-Drift Operational Amplifier
  • LTC2066 - Zero-Drift Operational Amplifier
  • LTC2067 - Zero-Drift Operational Amplifier
  • LTC2000A - 16-/14-/11-Bit 2.7Gsps DACs

Full PDF Text Transcription

Click to expand full text
LTC2066/LTC2067/LTC2068 10µA Supply Current, Low IB, Zero-Drift Operational Amplifier FEATURES n Low Supply Current: 10μA Maximum (per Amplifier) n Offset Voltage: 5μV Maximum n Offset Voltage Drift: 0.02μV/°C Maximum n Input Bias Current: n 5pA Typical n 50pA Maximum, –40°C to 85°C n 150pA Maximum, –40°C to 125°C n Integrated EMI Filter (90dB Rejection at 1.8GHz) n Shutdown Current: 170nA Maximum (per Amplifier) n Rail-to-Rail Input and Output n 1.7V to 5.
