LT7170-1, LT7170 - Silent Switcher Step-Down Regulators

Analog Devices

📥 Download Datasheet

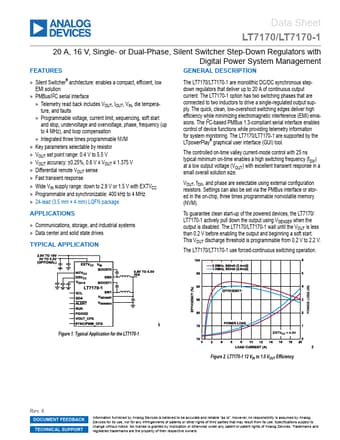

LT7170-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: LT7170-1, LT7170. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LT7170-1, LT7170
Manufacturer	Analog Devices
File Size	2.06 MB
Description	Silent Switcher Step-Down Regulators
Datasheet	LT7170-AnalogDevices.pdf
Note	This datasheet PDF includes multiple part numbers: LT7170-1, LT7170. Please refer to the document for exact specifications by model.

LT7170-1 Product details

Description

Silent Switcher® architecture: enables a compact, efficient, low EMI solution PMBus/I2C serial interface Telemetry read back includes VOUT, IOUT, VIN, die temperature, and faults Programmable voltage, current limit, sequencing, soft start and stop, undervoltage and overvoltage, phase, frequency (up to 4 MHz), and loop compensation Integrated three times programmable NVM Key parameters selectable by resistor VOUT set point range: 0.4 V to 5.5 V VOU
