HMC402MS8E, HMC402MS8 HIGH IP3 GaAs MMIC MIXER

HMC402MS8E Description

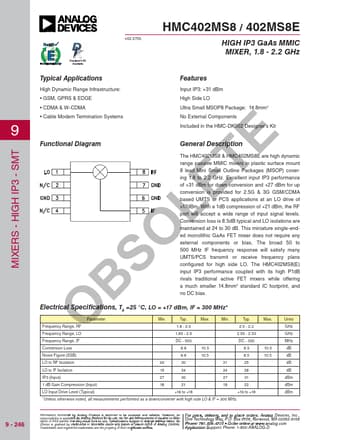

HMC402MS8 / 402MS8E v02.0705 HIGH IP3 GaAs MMIC MIXER, 1.8 - 2.2 GHz MIXERS - HIGH IP3 - SMT 9 9 - 246 Typical Applications .
The HMC402MS8 & HMC402MS8E are high dynamic range passive MMIC mixers in plastic surface mount 8 lead Mini Small Outline Packages (MSOP) covering 1.

HMC402MS8E Features

* High Dynamic Range Infrastructure: Input IP3: +31 dBm
* GSM, GPRS & EDGE High Side LO
* CDMA & W-CDMA Ultra Small MSOP8 Package: 14.8mm2
* Cable Modem Termination Systems No External Components Included in the HMC-DK002 Designer’s Kit SOLETE Functional Diagram Gene
