HMC344LP3 Datasheet PDF (GaAs MMIC SP4T NON-REFLECTIVE SWITCH)

HMC344LP3 - GaAs MMIC SP4T NON-REFLECTIVE SWITCH

Description

The HMC344LP3 & HMC344LP3E are broadband non-reflective GaAs MESFET SP4T switches in low cost leadless surface mount packages.

Covering DC to 8 GHz, this switch offers high isolation and low insertion loss and extends the frequency coverage of Hittite’s SP4T switch product line.

Features

Broadband Performance: DC - 8 GHz High Isolation: 40 dB@ 6 GHz Low Insertion Loss: 1.8 dB@ 6 GHz Integrated 2:4 TTL Decoder 16 Lead 3x3mm QFN Package: 9 mm² General.

Datasheet Details

Part number	HMC344LP3
Manufacturer	Analog Devices
File Size	352.04 KB
Description	GaAs MMIC SP4T NON-REFLECTIVE SWITCH
Datasheet	HMC344LP3 Datasheet
Additional preview pages of the HMC344LP3 datasheet.

📁 Similar Datasheet

HMC340LP5 - GaAs MMIC SMT DOUBLE-BALANCED DUAL MIXER (Hittite Microwave Corporation)

HMC342 - GaAs MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)

HMC345ALP3E - GaAs MMIC SP4T NON-REFLECTIVE POSITIVE CONTROL SWITCH (Hittite Microwave)

HMC349LP4C - HIGH ISOLATION SPDT NON-REFLECTIVE SWITCH (Hittite Microwave Corporation)

HMC349MS8G - HIGH ISOLATION SPDT NON-REFLECTIVE SWITCH (Hittite Microwave Corporation)

HMC300LM1 - SMT MEDIUM POWER GaAs MMIC (Hittite Microwave Corporation)

HMC304MS8 - GaAs MMIC (Hittite Microwave Corporation)

HMC305LP4 - 0.5 dB LSB GaAs MMIC (Hittite Microwave Corporation)

HMC305LP4E - 0.5 dB LSB GaAs MMIC (Hittite Microwave Corporation)

HMC309MS8 - 2.4 GHz FRONT-END LNA/SWITCH (Hittite Microwave Corporation)

Full PDF Text Transcription

Click to expand full text

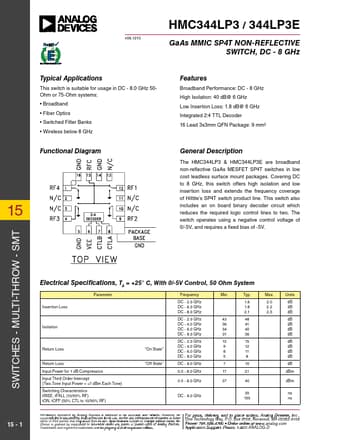

HMC344LP3 / 344LP3E v06.1210 GaAs MMIC SP4T NON-REFLECTIVE SWITCH, DC - 8 GHz Typical Applications This switch is suitable for usage in DC - 8.0 GHz 50Ohm or 75-Ohm systems: • Broadband • Fiber Optics • Switched Filter Banks • Wireless below 8 GHz Functional Diagram 15 Features Broadband Performance: DC - 8 GHz High Isolation: 40 dB@ 6 GHz Low Insertion Loss: 1.8 dB@ 6 GHz Integrated 2:4 TTL Decoder 16 Lead 3x3mm QFN Package: 9 mm² General Description The HMC344LP3 & HMC344LP3E are broadband non-reflective GaAs MESFET SP4T switches in low cost leadless surface mount packages. Covering DC to 8 GHz, this switch offers high isolation and low insertion loss and extends the frequency coverage of Hittite’s SP4T switch product line.
