HMC342LC4 - GaAs PHEMT MMIC LOW NOISE AMPLIFIER

Description

The HMC342LC4 is a GaAs pHEMT MMIC Low Noise Amplifier housed in a leadless 4x4 mm RoHS compliant SMT package.

Operating from 13 to 25 GHz, the amplifier provides 22 dB of gain and +19 dBm of output IP3 from a single +3V supply.

Features

  • Noise Figure: 3.5 dB Gain: 22 dB Single Positive Supply: +3V @ 43 mA 50 Ohm Matched Input/Output RoHS Compliant 4x4 mm SMT Package General.

📥 Download Datasheet

📁 Similar Datasheet

  • HMC342 - GaAs MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC340LP5 - GaAs MMIC SMT DOUBLE-BALANCED DUAL MIXER (Hittite Microwave Corporation)
  • HMC345ALP3E - GaAs MMIC SP4T NON-REFLECTIVE POSITIVE CONTROL SWITCH (Hittite Microwave)
  • HMC349LP4C - HIGH ISOLATION SPDT NON-REFLECTIVE SWITCH (Hittite Microwave Corporation)
  • HMC349MS8G - HIGH ISOLATION SPDT NON-REFLECTIVE SWITCH (Hittite Microwave Corporation)
  • HMC300LM1 - SMT MEDIUM POWER GaAs MMIC (Hittite Microwave Corporation)
  • HMC304MS8 - GaAs MMIC (Hittite Microwave Corporation)
  • HMC305LP4 - 0.5 dB LSB GaAs MMIC (Hittite Microwave Corporation)
  • HMC305LP4E - 0.5 dB LSB GaAs MMIC (Hittite Microwave Corporation)
  • HMC309MS8 - 2.4 GHz FRONT-END LNA/SWITCH (Hittite Microwave Corporation)
Other Datasheets by Analog Devices
  • HMC342 - GaAs MMIC LOW NOISE AMPLIFIER
  • HMC341LC3B - SMT GaAs PHEMT MMIC LOW NOISE AMPLIFIER
  • HMC344 - GaAs MMIC SP4T NON-REFLECTIVE SWITCH
  • HMC344ALP3E - GaAs MMIC SP4T NON-REFLECTIVE SWITCH
  • HMC344LC3 - GaAs MMIC SP4T NON-REFLECTIVE SWITCH
  • HMC344LH5 - GaAs MMIC SP4T NON-REFLECTIVE SWITCH
  • HMC344LP3 - GaAs MMIC SP4T NON-REFLECTIVE SWITCH
  • HMC344LP3E - GaAs MMIC SP4T NON-REFLECTIVE SWITCH

Full PDF Text Transcription

Click to expand full text

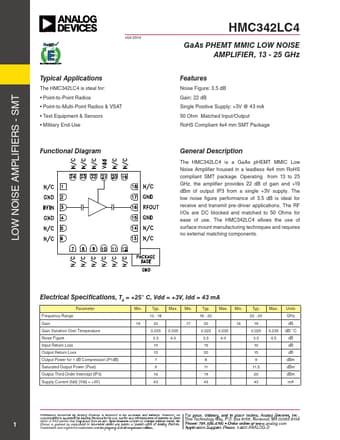

LOW NOISE AMPLIFIERS - SMT v04.0514 Typical Applications The HMC342LC4 is ideal for: • Point-to-Point Radios • Point-to-Multi-Point Radios & VSAT • Test Equipment & Sensors • Military End-Use Functional Diagram HMC342LC4 GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 13 - 25 GHz Features Noise Figure: 3.5 dB Gain: 22 dB Single Positive Supply: +3V @ 43 mA 50 Ohm Matched Input/Output RoHS Compliant 4x4 mm SMT Package General Description The HMC342LC4 is a GaAs pHEMT MMIC Low Noise Amplifier housed in a leadless 4x4 mm RoHS compliant SMT package. Operating from 13 to 25 GHz, the amplifier provides 22 dB of gain and +19 dBm of output IP3 from a single +3V supply. The low noise figure performance of 3.5 dB is ideal for receive and transmit pre-driver applications.
