HMC1161 - 8.71 GHz to 9.55 GHz MMIC VCO

Analog Devices

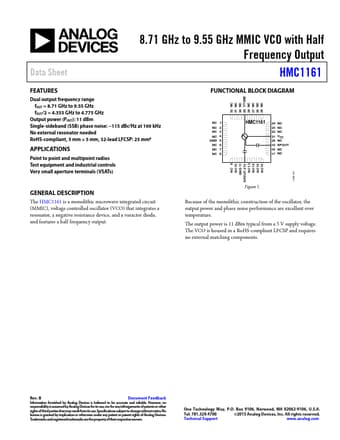

HMC1161 Datasheet Preview — Preview of HMC1161 PDF

Datasheet Details

Part number	HMC1161
Manufacturer	Analog Devices ↗
File Size	256.74 KB
Description	8.71 GHz to 9.55 GHz MMIC VCO
Datasheet	HMC1161-AnalogDevices.pdf

HMC1161 Product details

Description

The HMC1161 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates a resonator, a negative resistance device, and a varactor diode, and

Features

Dual output frequency range fOUT = 8.71 GHz to 9.55 GHz fOUT/2 = 4.355 GHz to 4.775 GHz Output power (POUT): 11 dBm Single-sideband (SSB) phase noise:.
115 dBc/Hz at 100 kHz No external resonator needed RoHS-compliant, 5 mm × 5 mm, 32-lead LFCSP: 25 mm².
