HMC1121 Power Amplifier

HMC1121 Description

Data Sheet 4 W, GaAs, pHEMT, MMIC Power Amplifier, 5.5 GHz to 8.5 GHz HMC1121 .
The HMC1121 is a.

HMC1121 Features

* High saturated output power (PSAT): 36.5 dBm at 30% power added efficiency (PAE) High output third-order intercept (IP3): 44 dBm typical High gain: 28 dB typical High output power for 1 dB compression (P1dB): 36 dBm typical Total supply current: 2200 mA at 7 V 40-lead, 6 mm × 6 mm LFCSP package: 36

HMC1121 Applications

* Point to point radios Point to multipoint radios Very small aperture terminals (VSATs) and satellite communications (SATCOMs) Military electronic warfare (EW) and electronic counter measures (ECM) FUNCTIONAL BLOCK DIAGRAM 40 NIC 39 NIC 38 NIC 37 VGG1 36 VDD1 35 NIC 34 VGG2 33 NIC 32 VDD2 31 NIC N

📥 Download Datasheet

Preview of HMC1121 PDF

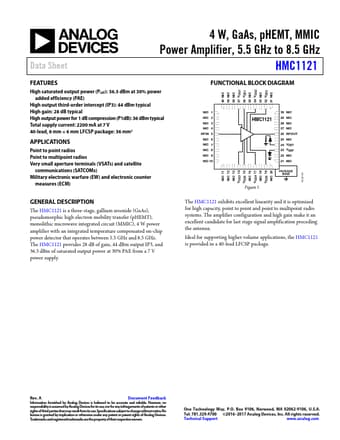

datasheet Preview Page 2 datasheet Preview Page 3
