HMC1014 - POWER AMPLIFIER

Analog Devices

📥 Download Datasheet

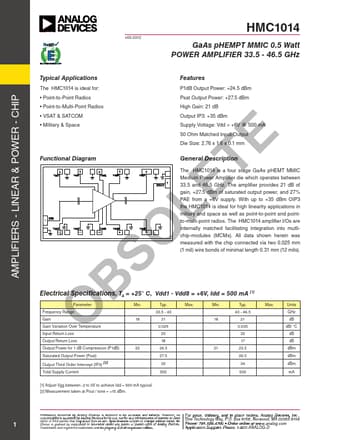

HMC1014 Datasheet Preview — Preview of HMC1014 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HMC1014
Manufacturer	Analog Devices
File Size	1.66 MB
Description	POWER AMPLIFIER
Datasheet	HMC1014-AnalogDevices.pdf

HMC1014 Product details

Description

The HMC1014 is a four stage GaAs pHEMT MMIC Medium Power Amplifier die which operates between 33.5 and 46.5 GHz.

Features

The HMC1014 is ideal for: P1dB Output Power: +24.5 dBm.
Point-to-Point Radios.
Point-to-Multi-Point Radios Psat Output Power: +27.5 dBm High Gain: 21 dB.
VSAT & SATCOM Output IP3: +35 dBm.
Military & Space OLETE Functional Diagram Supply Voltage: Vdd = +6V @ 500 mA 50 Ohm Matched Input/Output Die Size: 2.76 x 1.6 x 0.1 mm General.
