ADT7312 - Digital SPI Temperature Sensor

Description

The ADT7312 is a ±1°C accurate digital temperature sensor that opera

Features

  • Qualified for automotive.

📥 Download Datasheet

📁 Similar Datasheet

  • ADT7310 - system specific power supply IC (ADTech)
  • ADT7350 - step-down converter (ADTech)
  • ADT7351 - Step-Down Converter (ADtech)
  • ADT7110 - fixed frequency step-down converter (ADTech)
  • ADT7421 - Precision Temperature Sensor (ON Semiconductor)
  • ADT7461 - Temperature Monitor (ON Semiconductor)
  • ADT7461A - Temperature Monitor (ON Semiconductor)
  • ADT7462 - Voltage Monitor and System Fan Controller (ON Semiconductor)
  • ADT7463 - Remote Thermal Controller and Voltage Monitor (ON Semiconductor)
  • ADT7467 - dbCOOL Remote Thermal Monitor and Fan Controller (ON Semiconductor)
Other Datasheets by Analog Devices
  • ADT7310 - 16-Bit Digital SPI Temperature Sensor
  • ADT7311 - 16-Bit Digital SPI Temperature Sensor
  • ADT7316 - SPI/I2C Compatible/ 10-Bit Digital Temperature Sensor and Quad Voltage Output 12/10/8-Bit DAC
  • ADT7317 - SPI/I2C Compatible/ 10-Bit Digital Temperature Sensor and Quad Voltage Output 12/10/8-Bit DAC
  • ADT7318 - SPI/I2C Compatible/ 10-Bit Digital Temperature Sensor and Quad Voltage Output 12/10/8-Bit DAC
  • ADT7301 - 13-Bit/ 0.5C Accurate/ MicroPower Digital Temperature Sensor in 6-Lead SOT-23
  • ADT7302 - MicroPower Digital Temperature Sensor
  • ADT7320 - 16-Bit Digital SPI Temperature Sensor

Full PDF Text Transcription

Click to expand full text

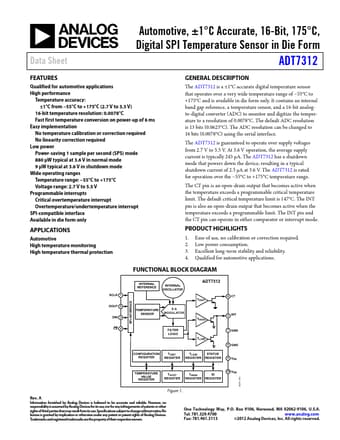

Data Sheet Automotive, ±1°C Accurate, 16-Bit, 175°C, Digital SPI Temperature Sensor in Die Form ADT7312 FEATURES Qualified for automotive applications High performance Temperature accuracy: ±1°C from −55°C to +175°C (2.7 V to 3.3 V) 16-bit temperature resolution: 0.0078°C Fast first temperature conversion on power-up of 6 ms Easy implementation No temperature calibration or correction required No linearity correction required Low power Power-saving 1 sample per second (SPS) mode 880 μW typical at 3.6 V in normal mode 9 μW typical at 3.6 V in shutdown mode Wide operating ranges Temperature range: −55°C to +175°C Voltage range: 2.7 V to 5.
