ADT70GN - PRTD Conditioning Circuit and Temperature Controller

Analog Devices

📥 Download Datasheet

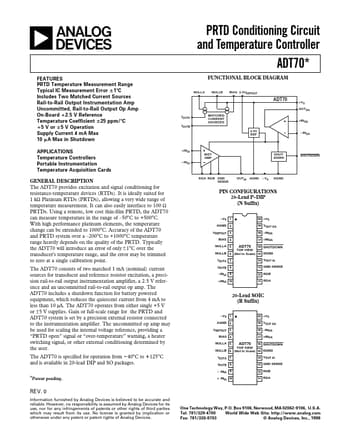

ADT70GN Datasheet Preview — Preview of ADT70GN PDF

Datasheet Details

Part number	ADT70GN
Manufacturer	Analog Devices
File Size	151.54 KB
Description	PRTD Conditioning Circuit and Temperature Controller
Datasheet	ADT70GN_AnalogDevices.pdf

ADT70GN Product details

Description

PRTD Conditioning Circuit and Temperature Controller ADT70 FUNCTIONAL BLOCK DIAGRAM NULLA NULLB BIAS 2.5VREFOUT ADT70 +VS OUTOA IOUTA IOUTB MATCHED CURRENT SOURCES 2.5V REF +INOA ؊INOA +INIA ؊INIA INST AMP SHUTDOWN SHUTDOWN RGA RGB GND SENSE OUTIA AGND ؊VS DGND The ADT70 provides excitation and signal conditioning for resistance-temperature devices (RTDs).It is ideally suited for 1 kΩ Platinum RTDs (PRTDs), allowing a very wide range of temperature measurement.It can also ea

Features

PRTD Temperature Measurement Range Typical IC Measurement Error ؎ 1؇C Includes Two Matched Current Sources Rail-to-Rail Output Instrumentation Amp Uncommitted, Rail-to-Rail Output Op Amp On-Board ؉ 2.5 V Reference Temperature Coefficient ؎ 25 ppm/؇C ؉ 5 V or ؎ 5 V Operation Supply Current 4 mA Max 10 ␮ A Max in Shutdown.
