ADT6503 - Micropower Temperature Switches

This page provides the datasheet information for the ADT6503, a member of the ADT6501 Micropower Temperature Switches family.

Description

The ADT6501/ADT6502/ADT6503/ADT6504 are trip point temperature switches available in a 5-lead SOT-23 package.

Each part contains an internal band gap temperature sensor for local temperature sensing.

When the temperature crosses the trip point setting, the logic output is activated.

Features

  • ±0.5°C (typical) threshold accuracy Factory-set trip points from.
  • 45°C to +15°C in 10°C increments +35°C to +115°C in 10°C increments No external components required Maximum temperature of 125°C Open-drain output (ADT6501/ADT6503) Push-pull output (ADT6502/ADT6504) Pin-selectable hysteresis of 2°C and 10°C Supply current of 30 µA (typical) Space-saving, 5-lead SOT-23 package.

📥 Download Datasheet

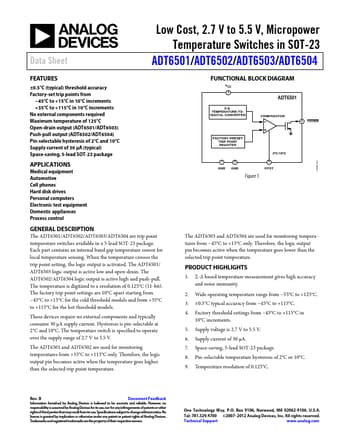

Datasheet preview – ADT6503

Datasheet Details

Part number ADT6503
Manufacturer Analog Devices
File Size 268.88 KB
Description Micropower Temperature Switches
Datasheet download datasheet ADT6503 Datasheet
Additional preview pages of the ADT6503 datasheet.

📁 Similar Datasheet

  • ADT6610 - 3-CH Constant current LED sink driver (ADtech)
  • ADT6752 - High Accuracy High Power LED Driver (ADTECH)
  • ADT6780 - Thermally enhanced Low VFB Step-Down LED Driver (EN) (ADTECH)
  • ADT6780 - Thermally enhanced Low VFB Step-Down LED Driver (CN) (ADTECH)
  • ADT6C60 - 3 Quadrants Triacs (ADV)
  • ADT6C60D - 3 Quadrants Triacs (ADV)
  • ADT6C60E - 3 Quadrants Triacs (ADV)
  • ADT6C60F - 3 Quadrants Triacs (ADV)
  • ADT6C80 - 3 Quadrants Triacs (ADV)
  • ADT6C80D - 3 Quadrants Triacs (ADV)
Other Datasheets by Analog Devices
  • ADT6501 - Micropower Temperature Switches
  • ADT6502 - Micropower Temperature Switches
  • ADT6504 - Micropower Temperature Switches
  • ADT6401 - (ADT6401 / ADT6402) Pin-Selectable Temperature Switches
  • ADT6402 - (ADT6401 / ADT6402) Pin-Selectable Temperature Switches
  • ADT14 - Quad Setpoint/ Programmable Temperature Monitor and Controller
  • ADT14GP - Quad Setpoint/ Programmable Temperature Monitor and Controller
  • ADT14GS - Quad Setpoint/ Programmable Temperature Monitor and Controller

Full PDF Text Transcription

Click to expand full text
Data Sheet Low Cost, 2.7 V to 5.5 V, Micropower Temperature Switches in SOT-23 ADT6501/ADT6502/ADT6503/ADT6504 FEATURES ±0.5°C (typical) threshold accuracy Factory-set trip points from −45°C to +15°C in 10°C increments +35°C to +115°C in 10°C increments No external components required Maximum temperature of 125°C Open-drain output (ADT6501/ADT6503) Push-pull output (ADT6502/ADT6504) Pin-selectable hysteresis of 2°C and 10°C Supply current of 30 µA (typical) Space-saving, 5-lead SOT-23 package APPLICATIONS Medical equipment Automotive Cell phones Hard disk drives Personal computers Electronic test equipment Domestic appliances Process control GENERAL DESCRIPTION The ADT6501/ADT6502/ADT6503/ADT6504 are trip point temperature switches available in a 5-lead SOT-23 package.
