ADP5022 - 600mA Buck Regulator

Name: ADP5022
SKU: ADP5022-674234

Analog Devices

📥 Download Datasheet

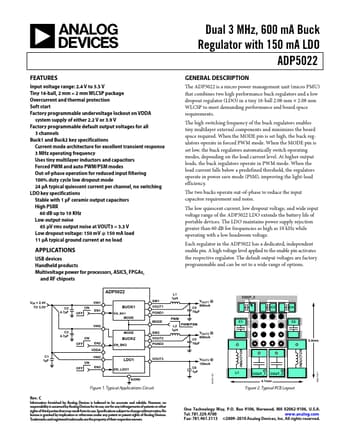

ADP5022 Datasheet Preview — Preview of ADP5022 PDF

Datasheet Details

Part number	ADP5022
Manufacturer	Analog Devices
File Size	1.05 MB
Description	600mA Buck Regulator
Datasheet	ADP5022_AnalogDevices.pdf

ADP5022 Product details

Description

The ADP5022 is a micro power management unit (micro PMU) that combines two high performance buck regulators and a low dropout regulator (LDO) in a tiny 16-ball 2.08 mm × 2.08 mm WLCSP to meet demanding performance and board space requirements.

Features

Input voltage range: 2.4 V to 5.5 V Tiny 16-ball, 2 mm × 2 mm WLCSP package Overcurrent and thermal protection Soft start Factory programmable undervoltage lockout on VDDA system supply of either 2.2 V or 3.9 V Factory programmable default output voltages for all 3 channels Buck1 and Buck2 key specifications Current mode architecture for excellent transient response 3 MHz operating frequency Uses tiny multilayer inductors and capacitors Forced PWM and auto PWM/PSM modes Out-of-phase operation fo.
