ADN8831 - Thermoelectric Cooler (TEC) Controller

Analog Devices

The ADN8831 by Analog Devices is a Thermoelectric Cooler (TEC) Controller. Below is the official datasheet preview.

📥 Download Datasheet

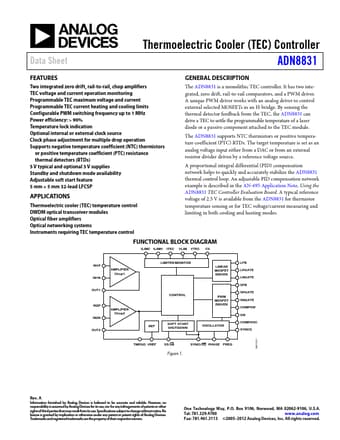

ADN8831 Thermoelectric Cooler (TEC) Controller by Analog Devices - Datasheet Preview — Official preview page of the **ADN8831** Thermoelectric Cooler (TEC) Controller datasheet (Analog Devices).

Datasheet Details

Part number	ADN8831
Manufacturer	Analog Devices
File Size	492.81 KB
Description	Thermoelectric Cooler (TEC) Controller
Datasheet	ADN8831_AnalogDevices.pdf
Additional preview pages of the ADN8831 datasheet.

ADN8831 Product details

Description

Two integrated zero drift, rail-to-rail, chop amplifiers TEC voltage and current operation monitoring Programmable TEC maximum voltage and current Programmable TEC current heating and cooling limits Configurable PWM switching frequency up to 1 MHz Power efficiency: > 90% Temperature lock indication Optional internal or external clock source Clock phase adjustment for multiple drop operation Supports negative temperature coefficient (NTC) thermistors or positive temperature coefficient (PTC) res
