ADM8615 - Ultralow Power Supervisory

This page provides the datasheet information for the ADM8615, a member of the ADM8612 Ultralow Power Supervisory family.

Description

The ADM8611/ADM8612/ADM8613/ADM8614/ADM8615 are voltage supervisory circuits that monitor power supply voltage levels and code execution integrity in microprocessor-based systems.

Features

  • Ultralow power consumption with ICC = 92 nA (typical) Continuous monitoring with no blank time Pretrimmed voltage monitoring threshold options 10 options from 2 V to 4.63 V for the ADM8611 20 options from 0.5 V to 1.9 V for the ADM8612/ADM8615 5 options from 2.32 V to 4.63 V for the ADM8613/ADM8614 ±1.3% threshold accuracy over full temperature range Manual reset input (ADM8611/ADM8612/ADM8613/ADM8615) 200 ms (typical) reset timeout Low voltage input monitoring down to 0.5 V (ADM8612/ ADM8615) W.

📥 Download Datasheet

Datasheet preview – ADM8615

Datasheet Details

Part number ADM8615
Manufacturer Analog Devices
File Size 322.28 KB
Description Ultralow Power Supervisory
Datasheet download datasheet ADM8615 Datasheet
Additional preview pages of the ADM8615 datasheet.

📁 Similar Datasheet

  • ADM8628 - Controller Miscellaneous (ADMTek)
  • ADM8211 - IEEE802.11b WLAN NIC Solution (ETC)
  • ADM8262 - Wireless LAN 802.11a/b/g Controller (Infineon Technologies AG)
  • ADM8513 - USB TO 10/100 MBPS ETHERNET LAN CONTROLLER (ETC)
  • ADM8P03S - P-Channel MOSFET (ADV)
  • ADM10-D05 - AC / DC CONVERTER (REICU)
  • ADM10-D05-05 - AC / DC CONVERTER (REICU)
  • ADM10-D05-12 - AC / DC CONVERTER (REICU)
  • ADM10-D05-24 - AC / DC CONVERTER (REICU)
  • ADM10-D12 - AC / DC CONVERTER (REICU)
Other Datasheets by Analog Devices
  • ADM8611 - Ultralow Power Supervisory
  • ADM8612 - Ultralow Power Supervisory
  • ADM8613 - Ultralow Power Supervisory
  • ADM8614 - Ultralow Power Supervisory
  • ADM8616 - Low Voltage Supervisory Circuits
  • ADM8617 - Low Voltage Supervisory Circuits
  • ADM8618 - Low-Voltage Manual Reset & Watchdog Supervisory Circuits
  • ADM8641 - Ultralow Power Voltage Detector

Full PDF Text Transcription

Click to expand full text

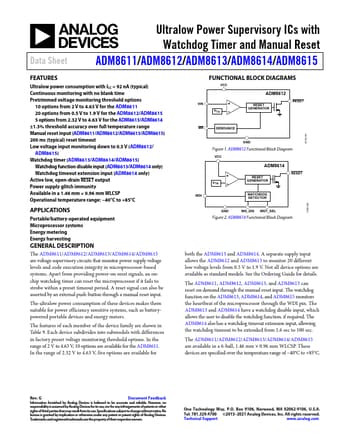

Data Sheet Ultralow Power Supervisory ICs with Watchdog Timer and Manual Reset ADM8611/ADM8612/ADM8613/ADM8614/ADM8615 FEATURES Ultralow power consumption with ICC = 92 nA (typical) Continuous monitoring with no blank time Pretrimmed voltage monitoring threshold options 10 options from 2 V to 4.63 V for the ADM8611 20 options from 0.5 V to 1.9 V for the ADM8612/ADM8615 5 options from 2.32 V to 4.63 V for the ADM8613/ADM8614 ±1.3% threshold accuracy over full temperature range Manual reset input (ADM8611/ADM8612/ADM8613/ADM8615) 200 ms (typical) reset timeout Low voltage input monitoring down to 0.
