ADM2795E - Robust 5kV RMS Isolated RS-485/RS-422 Transceiver

Description

The ADM2795E is a 5 kV rms signal isolated RS-485 transceiver that

📥 Download Datasheet

Datasheet Details

Part number ADM2795E
Manufacturer Analog Devices
File Size 745.33 KB
Description Robust 5kV RMS Isolated RS-485/RS-422 Transceiver
Datasheet download datasheet ADM2795E Datasheet

📁 Similar Datasheet

Other Datasheets by Analog Devices
  • ADM202 - CMOS RS-232 Driver/Receiver
  • ADM202E - RS-232 Line Drivers/Receivers
  • ADM203 - CMOS RS-232 Driver/Receivers
  • ADM205 - 0.1 uF/ +5 V Powered CMOS RS-232 Drivers/Receivers
  • ADM206 - 5V Powered CMOS RS-232 Drivers/Receivers
  • ADM206E - RS-232 Line Drivers/Receivers
  • ADM207 - 5V Powered CMOS RS-232 Drivers/Receivers
  • ADM207E - RS-232 Line Drivers/Receivers

Full PDF Text Transcription

Click to expand full text

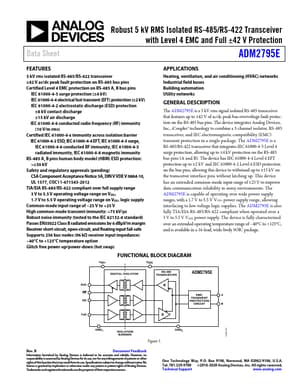

Data Sheet Robust 5 kV RMS Isolated RS-485/RS-422 Transceiver with Level 4 EMC and Full ±42 V Protection ADM2795E FEATURES APPLICATIONS 5 kV rms isolated RS-485/RS-422 transceiver ±42 V ac/dc peak fault protection on RS-485 bus pins Certified Level 4 EMC protection on RS-485 A, B bus pins IEC 61000-4-5 surge protection (±4 kV) IEC 61000-4-4 electrical fast transient (EFT) protection (±2 kV) IEC 61000-4-2 electrostatic discharge (ESD) protection ±8 kV contact discharge ±15 kV air discharge IEC 61000-4-6 conducted radio frequency (RF) immunity (10 V/m rms) Certified IEC 61000-4-x immunity across isolation barrier IEC 61000-4-2 ESD, IEC 61000-4-4 EFT, IEC 61000-4-5 surge, IEC 61000-4-6 conducted RF immunity, IEC 61000-4-3 radiated immunity, IEC 61000-4-8 magnetic immunity RS-485 A, B pins
