ADM2486 - Half-Duplex iCoupler Isolated RS-485 Transceiver

Description

The ADM2486 differential bus transceiver is an integrated, galvanically isolated component designed f

Features

  • Half-duplex, isolated RS-485 transceiver.

📥 Download Datasheet

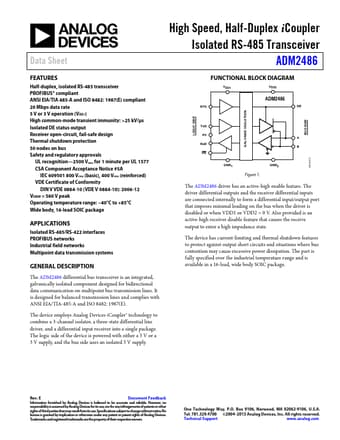

Datasheet preview – ADM2486

Datasheet Details

Part number ADM2486
Manufacturer Analog Devices
File Size 556.95 KB
Description Half-Duplex iCoupler Isolated RS-485 Transceiver
Datasheet download datasheet ADM2486 Datasheet
Additional preview pages of the ADM2486 datasheet.

📁 Similar Datasheet

Other Datasheets by Analog Devices
  • ADM2481 - Isolated RS-485 Transceiver
  • ADM2482E - 2.5 kV Isolated RS-485 Transceivers
  • ADM2483 - Half-Duplex iCoupler Isolated RS-485 Transceiver
  • ADM2484E - Isolated RS-485 Transceiver
  • ADM2485 - High Speed Isolated RS-485 Transceiver
  • ADM2487E - 2.5 kV Isolated RS-485 Transceivers
  • ADM241L - CMOS RS-232 Drivers/Receivers
  • ADM242 - CMOS RS-232 Drivers/Receivers

Full PDF Text Transcription

Click to expand full text
Data Sheet High Speed, Half-Duplex iCoupler Isolated RS-485 Transceiver ADM2486 FEATURES Half-duplex, isolated RS-485 transceiver PROFIBUS® compliant ANSI EIA/TIA 485-A and ISO 8482: 1987(E) compliant 20 Mbps data rate 5 V or 3 V operation (VDD1) High common-mode transient immunity: >25 kV/μs Isolated DE status output Receiver open-circuit, fail-safe design Thermal shutdown protection 50 nodes on bus Safety and regulatory approvals UL recognition—2500 Vrms for 1 minute per UL 1577 CSA Component Acceptance Notice #5A IEC 609501 800 Vrms (basic), 400 Vrms (reinforced) VDE Certificate of Conformity DIN V VDE 0884-10 (VDE V 0884-10): 2006-12 VIORM = 560 V peak Operating temperature range: −40°C to +85°C Wide body, 16-lead SOIC package APPLICATIONS Isolated RS-485/RS-422 interfaces PROFIBUS n
