ADG1412, ADG1411 - Quad SPST Switch

Analog Devices

The ADG1412 by Analog Devices is a Quad SPST Switch. Below is the official datasheet preview.

📥 Download Datasheet

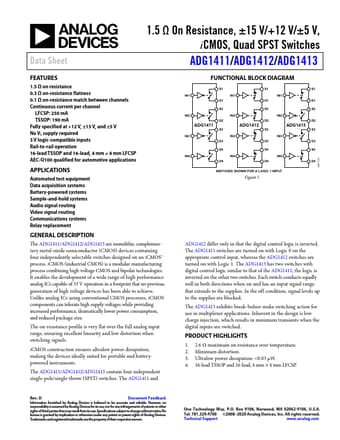

ADG1412 Quad SPST Switch by Analog Devices - Datasheet Preview — Official preview page of the **ADG1412** Quad SPST Switch datasheet (Analog Devices).

Datasheet Details

Part number	ADG1412, ADG1411
Manufacturer	Analog Devices
File Size	400.36 KB
Description	Quad SPST Switch
Datasheet	ADG1411_AnalogDevices.pdf
Note	This datasheet PDF includes multiple part numbers: ADG1412, ADG1411. Please refer to the document for exact specifications by model.
Additional preview pages of the ADG1412 datasheet.

ADG1412 Product details

Description

The ADG1411/ADG1412/ADG1413 are monolithic complementary metal-oxide semiconductor (CMOS) devices containing four independently selectable switches designed on an iCMOS® process.

Features

1.5 Ω on resistance 0.3 Ω on-resistance flatness 0.1 Ω on-resistance match between channels Continuous current per channel LFCSP: 250 mA TSSOP: 190 mA Fully specified at +12 V, ±15 V, and ±5 V No VL supply required 3 V logic-compatible inputs Rail-to-rail operation 16-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSP AEC-Q100 qualified for automotive.
