ADAQ4370-4 - DAQ signal chain uModule solution

Description

The ADAQ4370-4 is a quad-channel precision data acquisition (DAQ) signal chain μModule solution that reduces the development cycle of a precision measurement system by transferring the signal chain design challenges of component selection, optimization, and layout from the designer to the device.

Features

  • Easy to use μModule® data acquisition system.
  • 11× footprint reduction vs. discrete solution.
  • Integrated critical passive components.
  • 5 V single-supply operation.
  • Guaranteed 16-bit no missing codes.
  • On-chip oversampling function.
  • 2-bit resolution boost.
  • Out of range indicator (ALERT).
  • INL: ±0.85 LSB typical, ±2 LSB maximum.
  • SNR (typical).
  • 90.8 dB at gain = 1.0, fIN = 1 kHz.
  • 97.5 dB with OSR = ×8 at gain = 1.0, fIN = 1 kHz.
  • Channel-.

📥 Download Datasheet

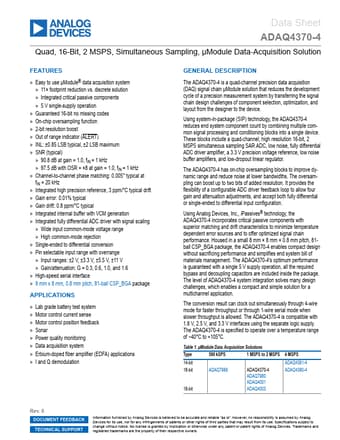

Datasheet preview – ADAQ4370-4

Datasheet Details

Part number ADAQ4370-4
Manufacturer Analog Devices
File Size 3.17 MB
Description DAQ signal chain uModule solution
Datasheet download datasheet ADAQ4370-4 Datasheet
Additional preview pages of the ADAQ4370-4 datasheet.

📁 Similar Datasheet

Other Datasheets by Analog Devices

Full PDF Text Transcription

Click to expand full text
Data Sheet ADAQ4370-4 Quad, 16-Bit, 2 MSPS, Simultaneous Sampling, µModule Data-Acquisition Solution FEATURES ► Easy to use μModule® data acquisition system ► 11× footprint reduction vs. discrete solution ► Integrated critical passive components ► 5 V single-supply operation ► Guaranteed 16-bit no missing codes ► On-chip oversampling function ► 2-bit resolution boost ► Out of range indicator (ALERT) ► INL: ±0.85 LSB typical, ±2 LSB maximum ► SNR (typical) ► 90.8 dB at gain = 1.0, fIN = 1 kHz ► 97.5 dB with OSR = ×8 at gain = 1.0, fIN = 1 kHz ► Channel-to-channel phase matching: 0.005° typical at fIN = 20 kHz ► Integrated high precision reference, 3 ppm/°C typical drift ► Gain error: 0.01% typical ► Gain drift: 0.
