ADA4937-1 - Ultra-Low Distortion Differential ADC Driver

Analog Devices

The ADA4937-1 by Analog Devices is a Ultra-Low Distortion Differential ADC Driver. Below is the official datasheet preview.

Datasheet Details

Part number	ADA4937-1
Manufacturer	Analog Devices
File Size	752.03 KB
Description	Ultra-Low Distortion Differential ADC Driver
Datasheet	ADA4937-1_AnalogDevices.pdf

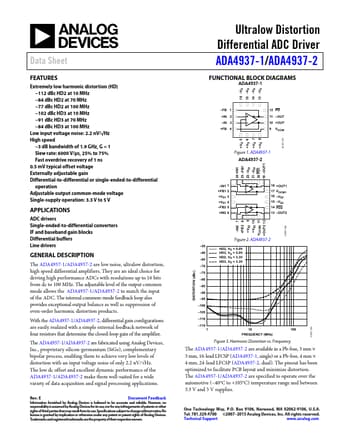

Additional preview pages of the ADA4937-1 datasheet.

The ADA4937-1/ADA4937-2 are low noise, ultralow distortion, high speed differential amplifiers.

Extremely low harmonic distortion (HD).
112 dBc HD2 at 10 MHz.
84 dBc HD2 at 70 MHz.
77 dBc HD2 at 100 MHz.
102 dBc HD3 at 10 MHz.
91 dBc HD3 at 70 MHz.
84 dBc HD3 at 100 MHz Low input voltage noise: 2.2 nV/√Hz High speed.
3 dB bandwidth of 1.9 GHz, G = 1 Slew rate: 6000 V/μs, 25% to 75% Fast overdrive recovery of 1 ns 0.5 mV typical offset voltage Externally adjustable gain Differential-to-differential or single-ended-to-differential opera.
