ADA4522-2 - Rail-to-Rail Output Operational Amplifier

Datasheet Summary

Description

The ADA4522-1/ADA4522-2/ADA4522-4 are single/dual/quad channel, zero drift op amps with low noise and power, ground sensing inputs, and rail-to-rail output, optimized for total accuracy over time, temperature, and voltage conditions.

Features

  • Low offset voltage: 5 µV maximum.
  • Extremely low offset voltage drift: 22 nV/°C maximum.
  • Low voltage noise density: 5.8 nV/√Hz typical.
  • 117 nV p-p typical from 0.1 Hz to 10 Hz.
  • Low input bias current: 50 pA typical.
  • Unity-gain crossover: 3 MHz typical.
  • Single-supply operation: input voltage range includes ground and rail-to-rail output.
  • Wide range of operating voltages.
  • Single-supply operation: 4.5 V to 55 V.
  • Dual-supply operation: ±2.25 V to ±27.

📥 Download Datasheet

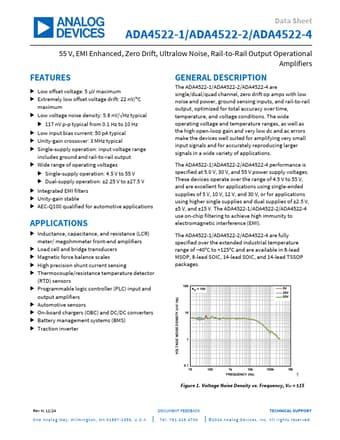

Datasheet preview – ADA4522-2

Datasheet Details

Part number ADA4522-2
Manufacturer Analog Devices
File Size 1.88 MB
Description Rail-to-Rail Output Operational Amplifier
Datasheet download datasheet ADA4522-2 Datasheet
Additional preview pages of the ADA4522-2 datasheet.
