ADA4351-2 - Programmable Gain Transimpedance Amplifier

Datasheet Summary

Description

Small, dual-channel, complete PGTIA and AFE solution Small size package:16-lead LFCSP, 3 mm × 3 mm Integrated switches, 2 external gains per channel Wide input current dynamic range from picoamps to milliamps Excellent DC precision Low offset voltage: ±100 μV max

📥 Download Datasheet

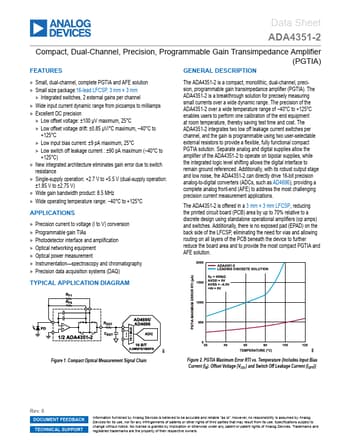

Datasheet preview – ADA4351-2

Datasheet Details

Part number ADA4351-2
Manufacturer Analog Devices
File Size 4.20 MB
Description Programmable Gain Transimpedance Amplifier
Datasheet download datasheet ADA4351-2 Datasheet
Additional preview pages of the ADA4351-2 datasheet.

📁 Similar Datasheet

  • ADA4543 - Silicon Bipolar Darlington Amplifier (Hewlett-Packard)
  • ADA4743 - Silicon Bipolar Darlington Amplifier (agilent)
  • ADA-4543 - Silicon Bipolar Darlington Amplifier (Hewlett-Packard)
  • ADA-4543 - Silicon Bipolar Darlington Amplifier (AVAGO)
  • ADA-4643 - Silicon Bipolar Darlington Amplifier (Hewlett-Packard)
  • ADA-4643 - Silicon Bipolar Darlington Amplifier (AVAGO)
  • ADA-4743 - Silicon Bipolar Darlington Amplifier (Hewlett-Packard)
  • ADA-4743 - Silicon Bipolar Darlington Amplifier (AVAGO)
  • ADA-4789 - Silicon Bipolar Darlington Amplifier (AVAGO)
  • ADA-FLEX-30P-050-SET - FFC Anschulssadapter (ES&S)
Other Datasheets by Analog Devices

Full PDF Text Transcription

Click to expand full text
Data Sheet ADA4351-2 Compact, Dual-Channel, Precision, Programmable Gain Transimpedance Amplifier (PGTIA) FEATURES GENERAL DESCRIPTION ► Small, dual-channel, complete PGTIA and AFE solution ► Small size package:16-lead LFCSP, 3 mm × 3 mm ► Integrated switches, 2 external gains per channel ► Wide input current dynamic range from picoamps to milliamps ► Excellent DC precision ► Low offset voltage: ±100 μV maximum, 25°C ► Low offset voltage drift: ±0.85 μV/°C maximum, −40°C to +125°C ► Low input bias current: ±9 pA maximum, 25°C ► Low switch off leakage current : ±90 pA maximum (−40°C to +125°C) ► New integrated architecture eliminates gain error due to switch resistance ► Single-supply operation: +2.7 V to +5.5 V (dual-supply operation: ±1.85 V to ±2.
