AD9953 - 1.8V CMOS Direct Digital Synthesizer

Features

  • 400 MSPS internal clock speed Integrated 14-bit DAC 32-bit tuning word Phase noise ≤.
  • 120 dBc/Hz @ 1 kHz offset (DAC output) Excellent dynamic performance >80 dB SFDR @ 160 MHz (±100 kHz offset) AOUT Serial I/O control 1.8 V power supply Software and hardware controlled power-down 48-lead TQFP/EP package Support for 5 V input levels on most digital inputs 400 MSPS, 14-Bit, 1.8 V CMOS Direct Digital Synthesizer AD9953 PLL REFCLK multiplier (4× to 20×) Internal oscillator, can be driven b.

📥 Download Datasheet

📁 Similar Datasheet

  • AD9256 - DIGITAL AMPLIFIER POWER STAGE (Elite Semiconductor)
  • AD9256H - DIGITAL AMPLIFIER POWER STAGE (Elite Semiconductor)
  • AD92580 - DIGITAL AMPLIFIER POWER STAGE (Elite Semiconductor)
  • AD92580C - DIGITAL AMPLIFIER POWER STAGE (Elite Semiconductor)
  • AD9700 - Video Dispaly D/A Converter (ETC)
Other Datasheets by Analog Devices
  • AD9951 - CMOS Direct Digital Synthesize
  • AD9952 - Direct Digital Synthesizer
  • AD9954 - 400 MSPS 14-Bit/ 1.8 V CMOS Direct Digital Synthesizer
  • AD9955 - 85Mhz Direct Digital Synthesizer
  • AD9956 - 2.7 GHz DDS-Based AgileRF Synthesizer
  • AD9957 - 1 GSPS Quadrature Digital Upconverter
  • AD9958 - 500 MSPS DDS
  • AD9959 - 4 Channel 500MSPS DDS with 10-bit DACs

Full PDF Text Transcription

Click to expand full text

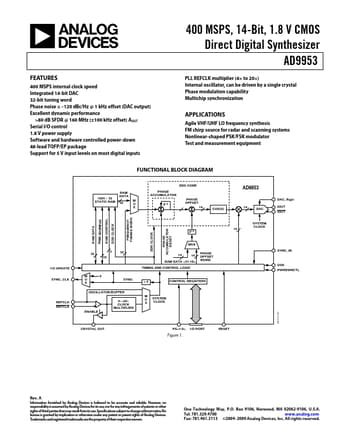

FEATURES 400 MSPS internal clock speed Integrated 14-bit DAC 32-bit tuning word Phase noise ≤ –120 dBc/Hz @ 1 kHz offset (DAC output) Excellent dynamic performance >80 dB SFDR @ 160 MHz (±100 kHz offset) AOUT Serial I/O control 1.8 V power supply Software and hardware controlled power-down 48-lead TQFP/EP package Support for 5 V input levels on most digital inputs 400 MSPS, 14-Bit, 1.
